Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

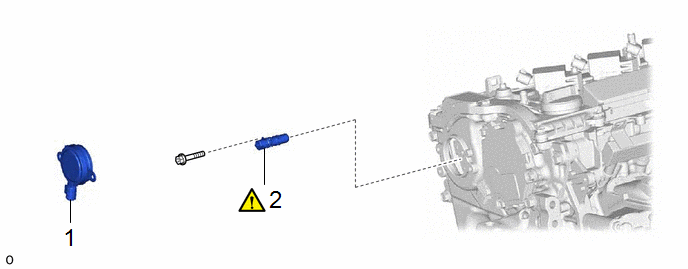

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

15370

-

-

-

2

CAMSHAFT TIMING VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

135A0B

-

-

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Click here

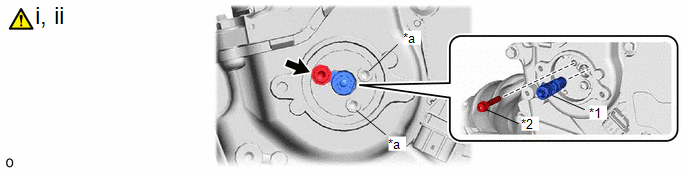

2. REMOVE CAMSHAFT TIMING VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

*1

Camshaft Timing Oil Control Valve Assembly (Exhaust Camshaft Timing Gear Bolt Assembly)

*2

Bolt

*a

Do not remove

-

-

(1) Using a 5 mm hexagon socket wrench, remove the bolt.

NOTICE:

Do not remove the other 2 bolts.

HINT:

If it is difficult to loosen the bolt due to the tools contacting the vehicle body or other parts, rotate the crankshaft to move the bolt to a position where it can be removed easily.

(2) Remove the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) from the camshaft timing exhaust gear assembly.
