Toyota Corolla Cross (2022-2025) Service Manual / Brake / Parking Brake / Electric Parking Brake Switch / Installation

INSTALLATION

CAUTION / NOTICE / HINT

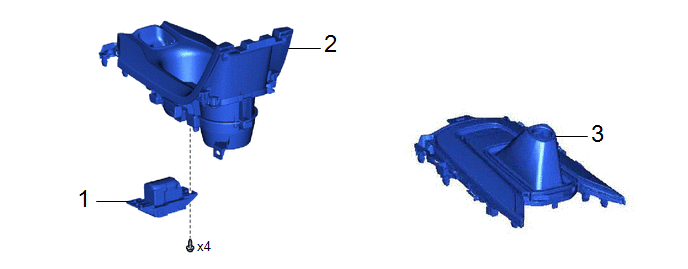

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

COMBINATION SWITCH ASSEMBLY

84390B

-

-

-

2

REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

-

-

-

-

3

POSITION INDICATOR HOUSING ASSEMBLY

35970F

-

-

-

PROCEDURE

1. INSTALL ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

2. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

Click here

3. INSTALL POSITION INDICATOR HOUSING ASSEMBLY

Click here
