Toyota Corolla Cross (2022-2025) Service Manual / Drivetrain / K120f (cvt) / Shift Stroke Sensor / Removal

REMOVAL

CAUTION / NOTICE / HINT

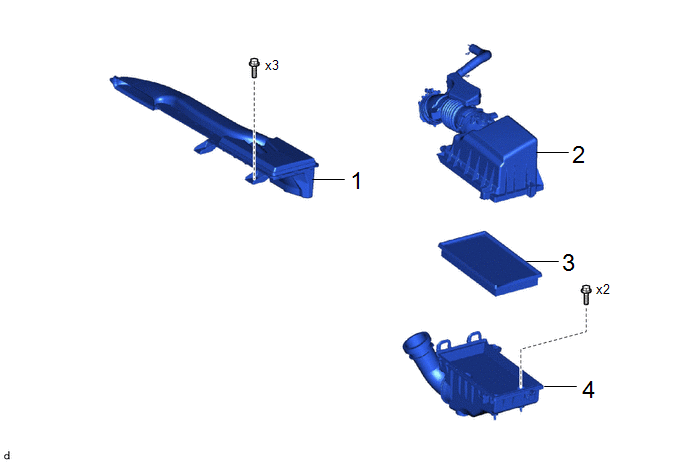

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

INLET NO. 1 AIR CLEANER

17751

-

-

-

2

AIR CLEANER CAP WITH AIR CLEANER HOSE

-

-

-

-

3

AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

17801

-

-

-

4

AIR CLEANER CASE SUB-ASSEMBLY

17701

-

-

-

Procedure

Part Name Code

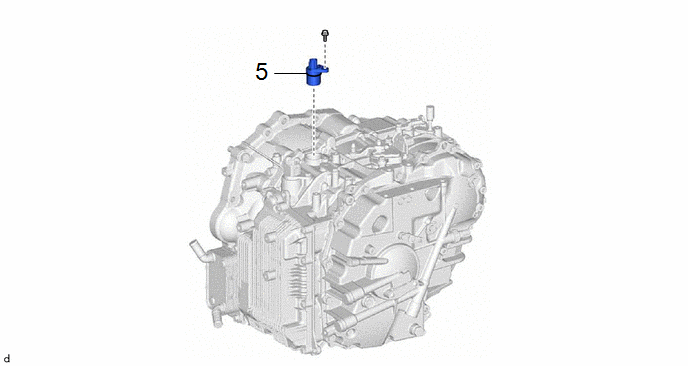

5

SHIFT STROKE SENSOR

89419B

-

-

-

PROCEDURE

1. REMOVE INLET NO. 1 AIR CLEANER

Click here

2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click here

3. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

Click here

4. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

Click here

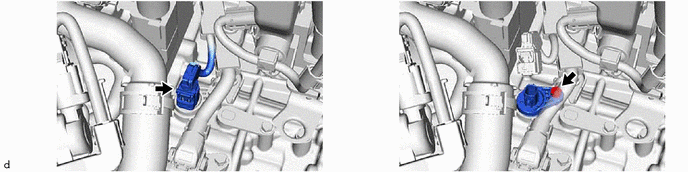

5. REMOVE SHIFT STROKE SENSOR
