Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

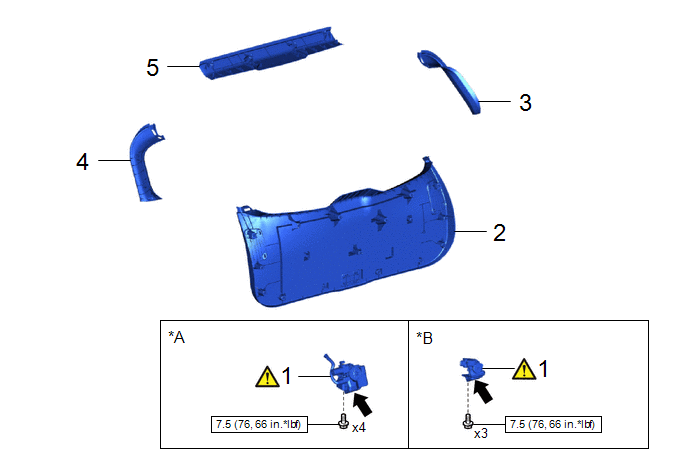

Procedure		Part Name Code
1	BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY	69350P		-	-
2	BACK DOOR TRIM PANEL ASSEMBLY	64780A	-	-	-
3	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
4	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
5	BACK DOOR UPPER PANEL TRIM ASSEMBLY	64790B	-	-	-

*A	w/ Power Back Door	*B	w/o Power Back Door
	N*m (kgf*cm, ft.*lbf): Specified torque		MP grease

PROCEDURE

1. INSTALL BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

HINT: Make sure to remove the string before installing a new back door lock with courtesy light switch assembly.

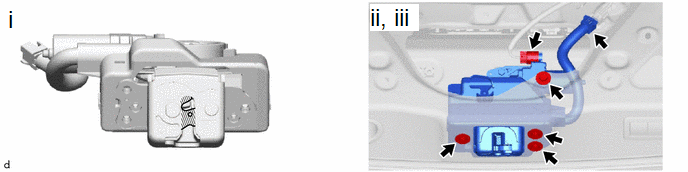

(a) w/ Power Back Door:

MP Grease

-

-

(1) Apply MP grease to the sliding parts of the back door lock with courtesy light switch assembly.

(2) Install the back door lock with courtesy light switch assembly with the 4 bolts.

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

(3) Connect the 2 connectors.

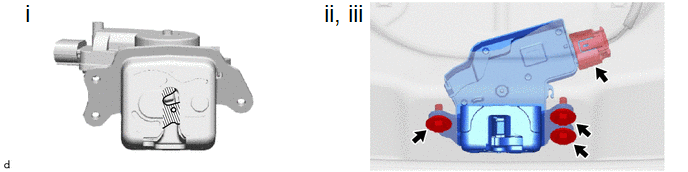

(b) w/o Power Back Door:

MP Grease

-

-

(1) Apply MP grease to the sliding parts of the back door lock with courtesy light switch assembly.

(2) Install the back door lock with courtesy light switch assembly with the 3 bolts.

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

(3) Connect the connector.

2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

3. INSTALL BACK DOOR SIDE GARNISH RH

4. INSTALL BACK DOOR SIDE GARNISH LH

5. INSTALL BACK DOOR UPPER PANEL TRIM ASSEMBLY
