Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Door Lock / Door Control Receiver / Installation

INSTALLATION

CAUTION / NOTICE / HINT

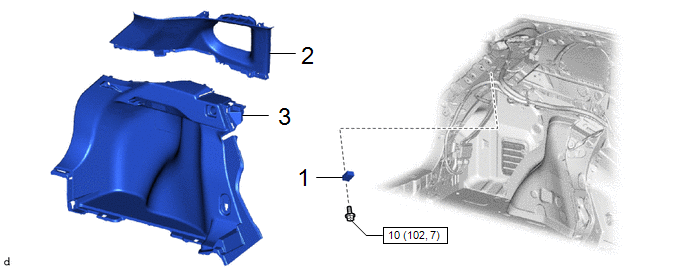

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY

897A0A

-

-

-

2

ROOF SIDE INNER GARNISH ASSEMBLY LH

62480A

-

-

-

3

DECK TRIM SIDE PANEL ASSEMBLY LH

64740C

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

2. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH

3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
