Toyota Corolla Cross: Door Control Switch (for Driver Side)

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Door Lock / Door Control Switch (for Driver Side)

Removal

REMOVAL

CAUTION / NOTICE / HINT

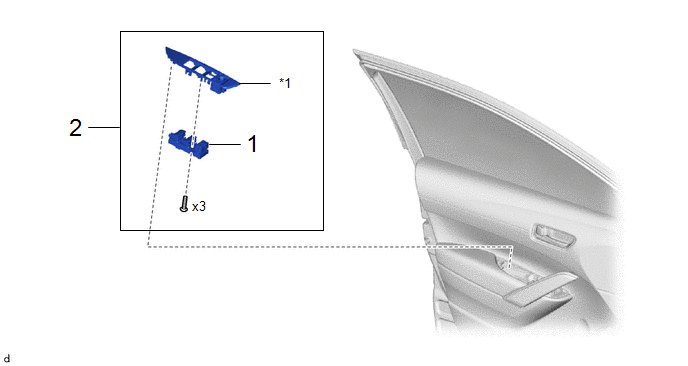

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL LH

-

-

-

2

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

84040

-

-

-

*1

FRONT ARMREST BASE UPPER PANEL LH

-

-

PROCEDURE

1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL LH

Click here

2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

Inspection

INSPECTION

PROCEDURE

1. INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

(a) Check that the LED illuminates.

(1) Apply auxiliary battery voltage to the multiplex network master switch assembly and check that the LED illuminates.

OK:

Tester Connection

Specified Condition

Auxiliary battery positive (+) → L11-3 (ILL+)

Auxiliary battery negative (-) → L11-13 (ILL-)

LED illuminates

If the result is not as specified, replace the multiplex network master switch assembly.

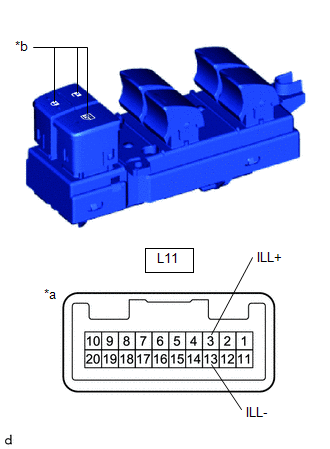

*a

Component without harness connected

(Multiplex Network Master Switch Assembly)

*b

LED Illumination

Installation

INSTALLATION

CAUTION / NOTICE / HINT

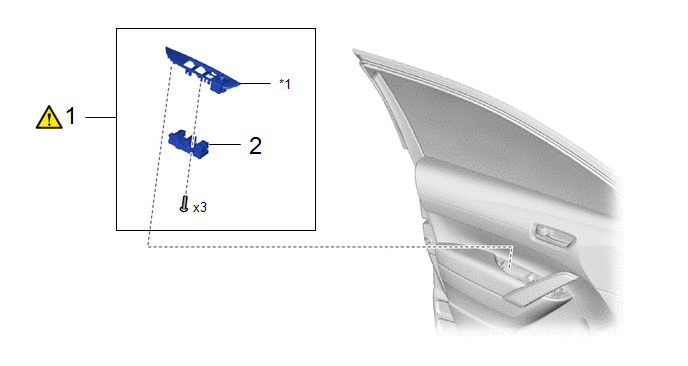

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

84040

-

-

-

2

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL LH

-

-

-

-

*1

FRONT ARMREST BASE UPPER PANEL LH

-

-

PROCEDURE

1. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

2. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL LH
