Toyota Corolla Cross: Power Source Mode does not Change to ON (IG)

DESCRIPTION

If the engine switch is pressed with the electrical key transmitter sub-assembly in the cabin, the certification ECU (smart key ECU assembly) receives a signal and changes the power source mode.

Related Data List and Active Test Items

Problem Symptom

Data List and Active Test

Power source mode does not change to ON but does change to ACC

Power Source Control
  • Power Supply Condition
  • IGP Relay Circuit (Outside) Monitor
  • IGP Relay Circuit (Inside) Monitor
  • IGR Relay Circuit (Outside) Monitor
  • IGR Relay Circuit (Inside) Monitor

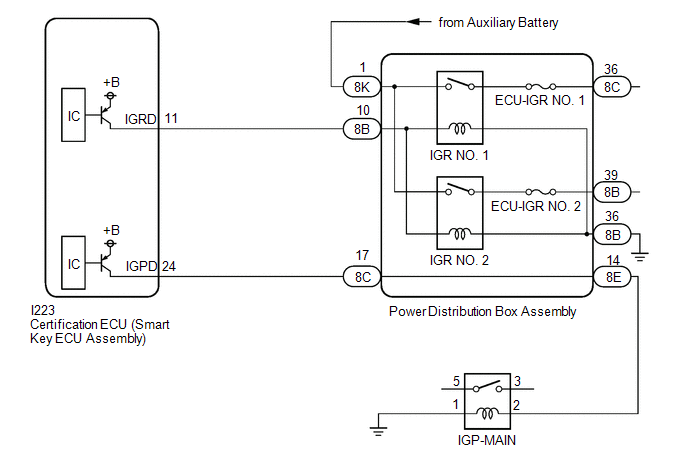

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select the vehicle type under manual mode and enter the following menus: Body Electrical / Smart Key. While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
  • The smart key system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart key system (for Start Function) after confirming that the communication systems are functioning properly.

    Click here

  • Make sure that no DTCs are output. If any DTCs are output, proceed to Diagnostic Trouble Code Chart.
  • If the smart key system (for Start Function) has been disabled, enable the system before performing troubleshooting.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • Before replacing the certification ECU (smart key ECU assembly), refer to Registration.

    Click here

  • After completing repairs, confirm that the problem does not recur.
  • After performing repairs, confirm that no DTCs are output by performing "DTC Output Confirmation Operation."

HINT:

  • If interior verification is unsuccessful, Operation History may be stored.
  • If Operation History has been stored, refer to the Operation History List to determine the detection conditions and narrow down trouble areas.
Body Electrical > Smart Key > Utility

Tester Display

Vehicle Control History (RoB)

PROCEDURE

1.

CHECK FOR DTC

(a) Using the GTS, check for certification ECU (smart key ECU assembly) DTCs.

Body Electrical > Power Source Control > Trouble Codes Body Electrical > Smart Key > Trouble Codes

Result

Proceed to

DTCs are not output

A

Smart key system (for Start Function) DTCs are output

B

B

GO TO DIAGNOSTIC TROUBLE CODE CHART

A

2.

CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) AND BODY GROUND)

(a) Disconnect the I223 certification ECU (smart key ECU assembly) connector.

(b) Disconnect the 8B and 8C power distribution box assembly connectors.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I223-24 (IGPD) - 8C-17

Always

Below 1 Ω

I223-11 (IGRD) - 8B-10

Always

Below 1 Ω

8B-36 - Body ground

Always

Below 1 Ω

I223-24 (IGPD) or 8C-17 - Other terminals and body ground

Always

10 kΩ or higher

I223-11 (IGRD) or 8B-10 - Other terminals and body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Connect the I223 certification ECU (smart key ECU assembly) connector.

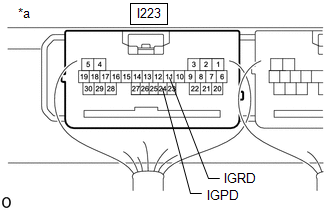

*a

Component with harness connected

(Certification ECU (Smart Key ECU Assembly))

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

I223-11 (IGRD) - Body ground

Ignition switch ACC → Ignition switch ON

1 V or less → 9 V or higher

I223-24 (IGPD) - Body ground

Ignition switch ACC → Ignition switch ON

1 V or less → 9 V or higher

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

OK

4.

CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - POWER SOURCE)

(a) Disconnect the I223 certification ECU (smart key ECU assembly) connector.

(b) Disconnect the 8B, 8C, 8E and 8K power distribution box assembly connectors.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

8H-1 - Body ground

Ignition switch off

11 to 14 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

5.

CHECK POWER DISTRIBUTION BOX ASSEMBLY

(a) Remove the power distribution box assembly.

Click here

(b) Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.

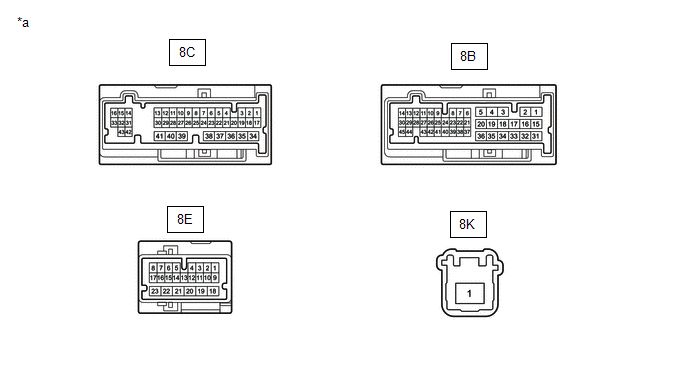

*a

Component without harness connected

(Power Distribution Box Assembly)

-

-

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

8C-17 - 8E-14

Always

Below 1 Ω

(d) Connect the auxiliary battery terminal (+) to the 8B-10 terminal.

(e) Connect the auxiliary battery terminal (-) to the 8B-36 terminal.

(f) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

8K-1 - 8C-36

Battery voltage applied between terminals 8B-10 and 8B-36

Below 1 Ω

8K-1 - 8B-39

Battery voltage applied between terminals 8B-10 and 8B-36

Below 1 Ω

NG

REPLACE POWER DISTRIBUTION BOX ASSEMBLY

OK

6.

CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - IGP-MAIN RELAY)

(a) Disconnect the 8E power distribution box assembly connector.

(b) Remove the IGP-MAIN relay from the No. 1 engine room relay block.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

8E-14 - No. 1 engine room relay block IGP-MAIN relay terminal 2

Always

Below 1 Ω

No. 1 engine room relay block IGP-MAIN relay terminal 1 - Body ground

Always

Below 1 Ω

8E-14 or No. 1 engine room relay block IGP-MAIN relay terminal 2 - Other terminals and body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

7.

INSPECT IGP-MAIN RELAY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 - 5

Battery voltage applied between terminals 1 and 2

Below 1 Ω

Battery voltage not applied between terminals 1 and 2

10 kΩ or higher

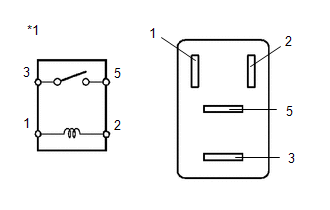

*1

IGP-MAIN Relay

OK

REPAIR OR REPLACE HARNESS OR CONNECTOR

NG

REPLACE IGP-MAIN RELAY
