INSPECTION

PROCEDURE

1. INSPECT SHIFT STROKE SENSOR

(a) Connect 3 new dry-cell batteries (1.5 V each) in series.

(b) Prepare a magnet or equivalent tool.

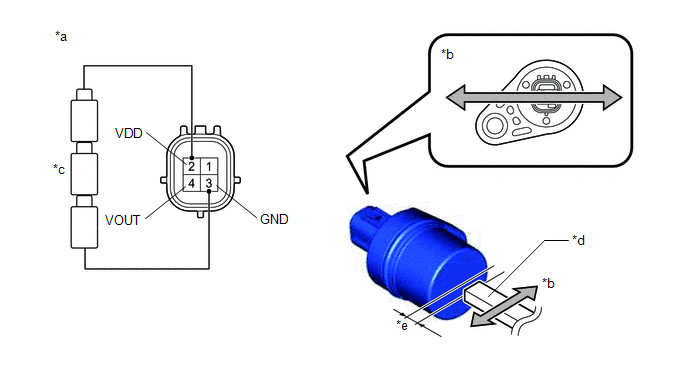

(c) Connect a positive (+) lead from the batteries to terminal 2 (VDD) and a negative (-) lead to terminal 3 (GND).

*a

Component without harness connected

(Shift Stroke Sensor)

*b

Magnet Movement Direction

*c

Dry Cell Battery

*d

Magnet

*e

2.6 mm (0.102 in.) or less

-

-

(d) Wave the magnet left and right 2.6 mm (0.102 in.) or less from the tip of the shift stroke sensor to output a high/low signal while measuring the voltage.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage (Combined Dry-cell Battery Voltage of 4.5 V):

Tester Connection

Condition

Specified Condition

4 (VOUT) - 3 (GND)

High voltage

4.09 to 4.19 V

Low voltage

0.36 to 0.45 V

Reference Voltage (Combined Dry-cell Battery Voltage of 5.0 V):

Tester Connection

Condition

Specified Condition

4 (VOUT) - 3 (GND)

High voltage

4.55 to 4.65 V

Low voltage

0.4 to 0.5 V

(f) If the result is not as specified, replace the shift stroke sensor.
