Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

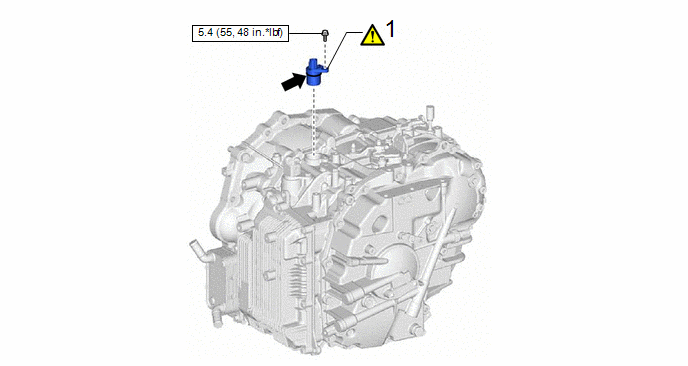

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

SHIFT STROKE SENSOR

89419B

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Toyota Genuine CVT Fluid FE

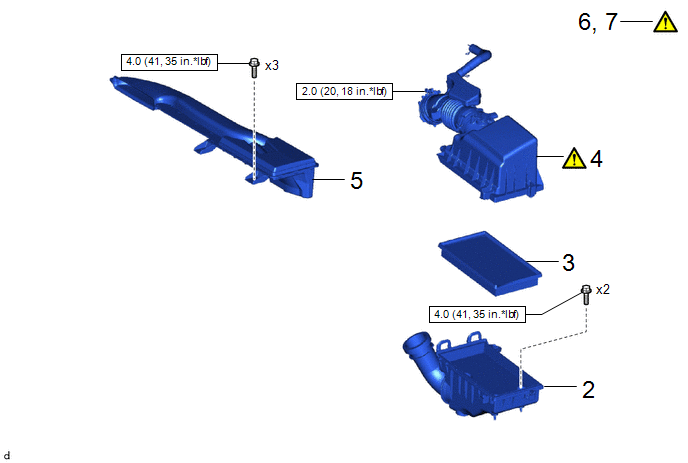

Procedure

Part Name Code

2

AIR CLEANER CASE SUB-ASSEMBLY

17701

-

-

-

3

AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

17801

-

-

-

4

AIR CLEANER CAP WITH AIR CLEANER HOSE

-

-

-

5

INLET NO. 1 AIR CLEANER

17751

-

-

-

6

INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK

-

-

-

7

CHECK DATA LIST

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

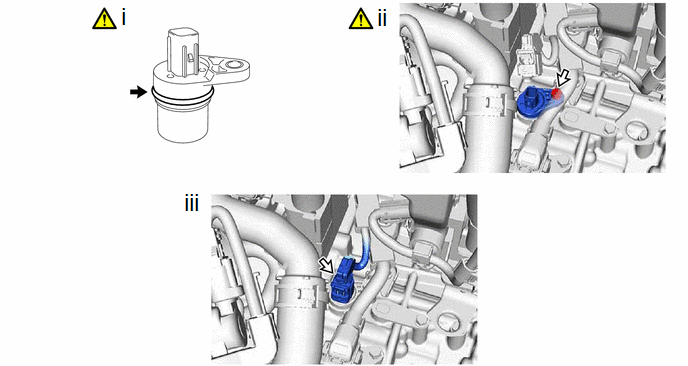

1. INSTALL SHIFT STROKE SENSOR

Toyota Genuine CVT fluid FE

-

-

(1) Coat the O-ring of the shift stroke sensor with Toyota Genuine CVT fluid FE.

NOTICE:

If reusing the shift stroke sensor, check that the O-ring is not damaged.

(2) Install the shift stroke sensor to the transaxle case sub-assembly with the bolt.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

NOTICE:

Be careful not to damage the O-ring.

(3) Connect the shift stroke sensor connector.

2. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

Click here

3. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

4. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

Click here

5. INSTALL INLET NO. 1 AIR CLEANER

Click here

6. INSPECT FOR CONTINUOUSLY VARIABLE TRANSAXLE FLUID LEAK

Click here

7. CHECK DATA LIST

Click here
