Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Lighting (ext) / Hazard Warning Switch / Removal

REMOVAL

CAUTION / NOTICE / HINT

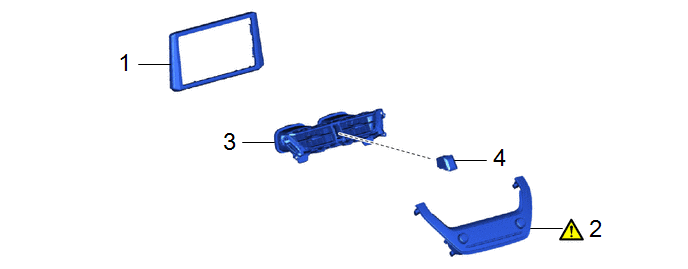

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

55405B

-

-

-

2

AIR CONDITIONING CONTROL ASSEMBLY

55900

-

-

3

CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

55670A

-

-

-

4

HAZARD WARNING SIGNAL SWITCH ASSEMBLY

84330

-

-

-

PROCEDURE

1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

Click here

3. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

Click here

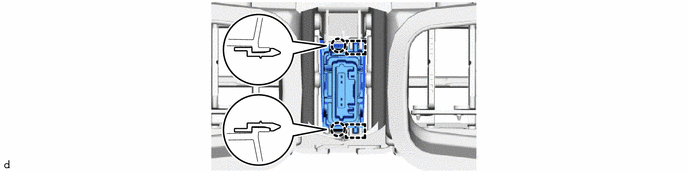

4. REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY
