Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

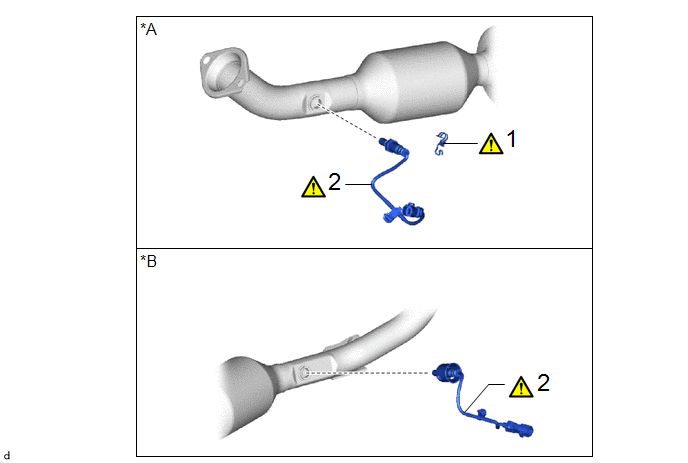

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

WIRING HARNESS CLAMP BRACKET

82715W

-

-

2

NO. 2 AIR FUEL RATIO SENSOR

89467C

-

-

*A

for 2WD

*B

for AWD

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during air fuel ratio sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

  • Replacement of air fuel ratio sensor (sensor 2)
  • Gas leak from exhaust system is repaired

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

PROCEDURE

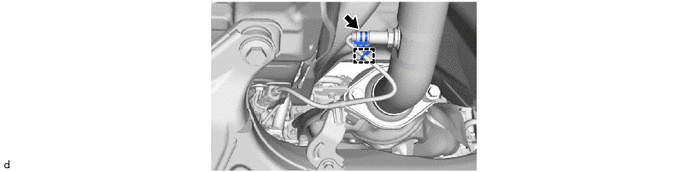

1. REMOVE WIRING HARNESS CLAMP BRACKET (for 2WD)

CAUTION:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

2. REMOVE NO. 2 AIR FUEL RATIO SENSOR

CAUTION:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

NOTICE:

If the air fuel ratio sensor has been struck or dropped, replace it.

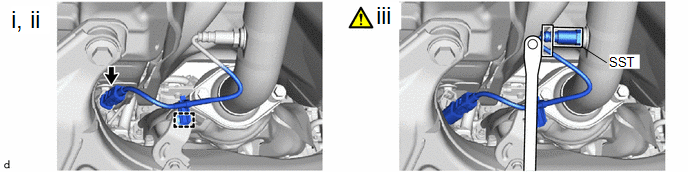

(a) for 2WD:

(1) Disconnect the air fuel ratio sensor connector.

(2) Disengage the wire harness clamp.

(3) Using SST, remove the No. 2 air fuel ratio sensor from the front exhaust pipe assembly (TWC: Rear Catalyst).

SST: 09224-00012

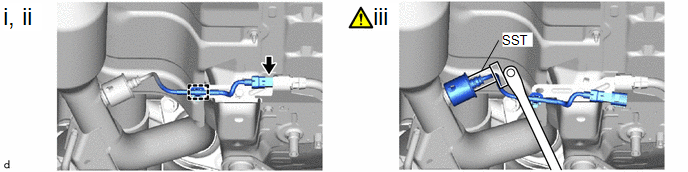

(b) for AWD:

(1) Disconnect the air fuel ratio sensor connector.

(2) Disengage the wire harness clamp.

(3) Using SST, remove the No. 2 air fuel ratio sensor from the front exhaust pipe assembly (TWC: Rear Catalyst).

SST: 09224-00012
