Toyota Corolla Cross: Calibration

CALIBRATION

NOTICE:

When any of the following parts have been replaced, perform adjustment shown in the following table. If not, the parking support brake system may not operate correctly.

PRECAUTION (PROCEDURE 1)

(a) The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during parking support brake system removal/installation are shown below.

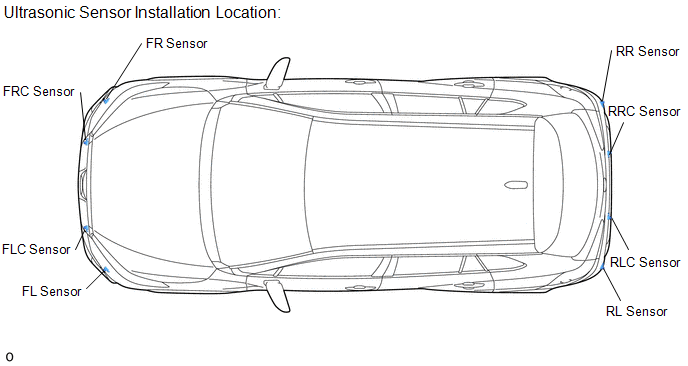

For the installation location of the ultrasonic sensors, refer to Parts Location.

Click here

HINT:

When the bumper is removed and installed, or when the sensor is removed and installed, the registration is not required. However, if the body part is damaged or deformed due to an accident or contact, etc., and the body part is modified, measurement and registration are required.

Part Name

Operation

Adjustment Item

Proceed to

Front bumper assembly

When the front bumper and ultrasonic sensor is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired.

Measurement of ultrasonic sensor detection angle

Procedure 2, 3

Ultrasonic sensor detection angle registration

Procedure 4

Rear bumper assembly

When the rear bumper and ultrasonic sensor is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired.

Measurement of ultrasonic sensor detection angle

Procedure 2, 3

Ultrasonic sensor detection angle registration

Procedure 4

Clearance warning ECU assembly

Replacement

Update ECU security key

Measurement of ultrasonic sensor detection angle

Procedure 2, 3

Bumper type registration

Procedure 4

Ultrasonic sensor detection angle registration

Ultrasonic sensor

Replacement

Measurement of ultrasonic sensor detection angle

Procedure 2, 3

Ultrasonic sensor detection angle registration

Procedure 4

Blind spot monitor sensor

Replacement

Blind spot monitor beam axis confirmation

PREPARATION (PROCEDURE 2)

(a) Preparation

  • Digital angle gauge
  • Digital angle gauge attachment
  • Masking tape (To prevent damage)
  • A level

SST: 09989-00020

(b) Confirm levelness of floor surface.

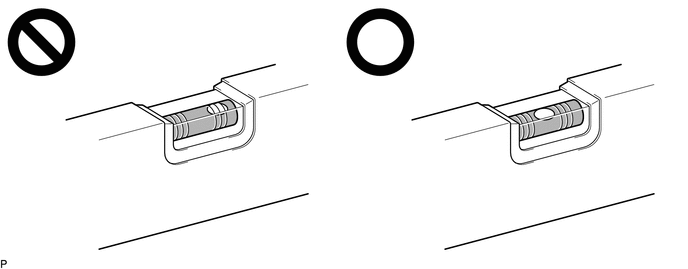

(1) Place a bubble level on a level surface and confirm that the bubble is centered.

NOTICE:

Make sure that there is no gravel, sand, etc., and that the surface is not undulating.

HINT:

By adjusting the direction of the bubble level, it is possible to find a position where the bubble is centered.

(2) Turn on the digital angle gauge.

(3) Place the digital angle gauge in the same location and direction as that of the bubble level where the levelness of the surface was confirmed.

NOTICE:

Confirm that the location and direction of the digital angle gauge is exactly the same as that of the bubble level.

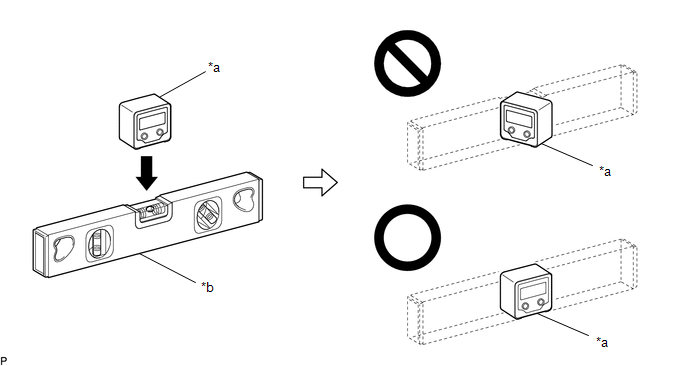

*a

Digital Angle Gauge

*b

Level

(4) Press the "ZERO" switch to memorize the zero point (perfectly level).

NOTICE:

Make sure that the digital angle gauge does not move when pressing the switch. If the digital angle gauge moves when the switch is pressed, an incorrect zero point may be memorized and it will not be possible to accurately check for levelness.

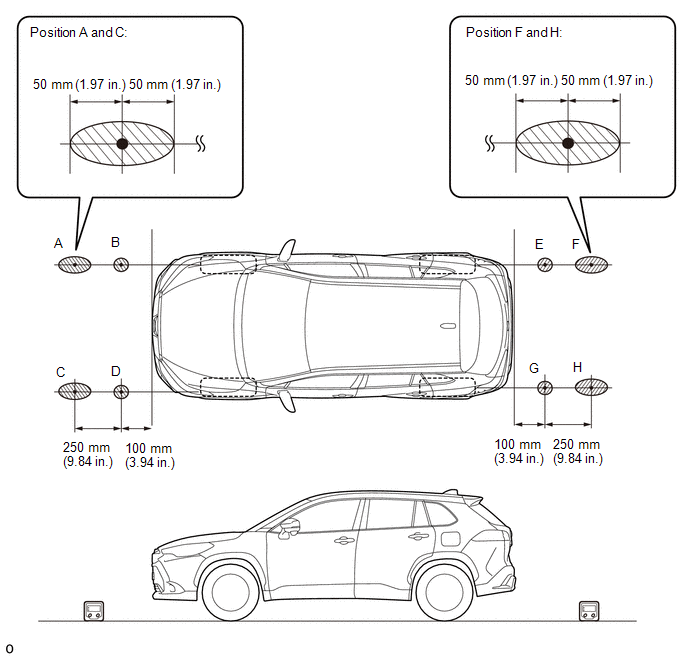

(5) Using the digital angle gauge in which the zero point (perfectly level) has been memorized, measure the angle of the floor surface at the 4 positions at the front of the vehicle and the 4 positions at the rear of the vehicle as shown in the illustration.

NOTICE:

  • Always position the digital angle gauge in the direction shown in the illustration.
  • Make sure that there is no gravel, sand, etc., and that the floor surface is not undulating.
  • When measuring the angle of the floor surface, avoid uneven areas such as joints between tiles.

HINT:

If necessary, the digital angle gauge can be placed anywhere within the specified area when measuring the angle of the floor surface for positions A, C, F and H.

Confirmation Area

-

-

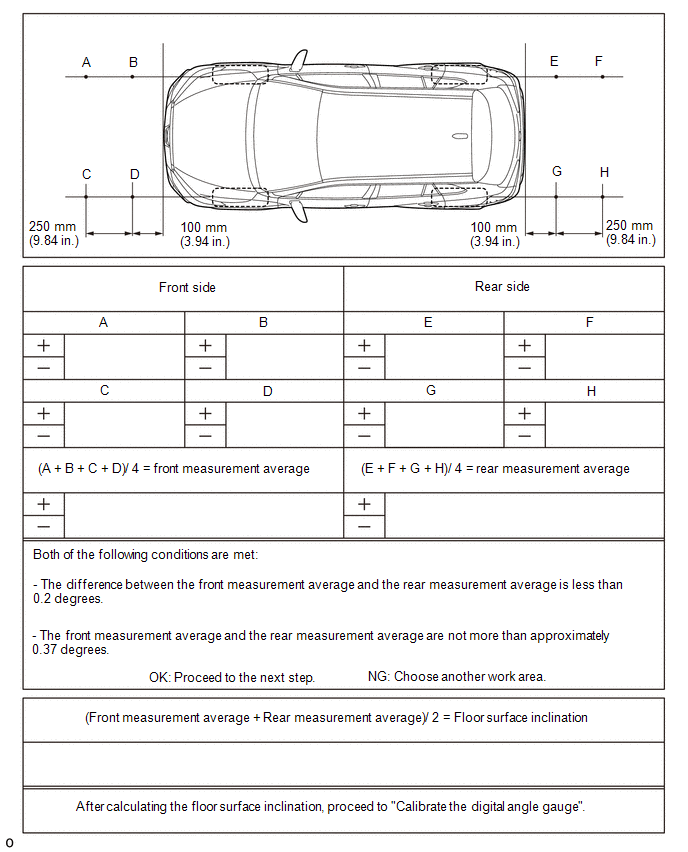

(6) Using the following worksheet, calculate the average of the measurements taken at the 4 positions in front of the vehicle, and calculate the average of the measurements taken at the 4 positions behind the vehicle. Confirm that the front measurement average and the rear measurement average are not more than approximately 0.37 degrees. Also, confirm that the front measurement average and the rear measurement average is less than 0.2 degrees.

NOTICE:

If the front measurement average and the rear measurement average are more than approximately 0.37 degrees or the difference between the front measurement average and the rear measurement average is 0.2 degrees or more, choose another work area as it is not possible to accurately check the installation angle of the sensors.

Worksheet:

(7) Average the front measurement average and the rear measurement average, then round the answer to 1 decimal place (E.g. 0.0927 degrees is rounded to 0.1 degrees) to obtain the floor surface inclination value.

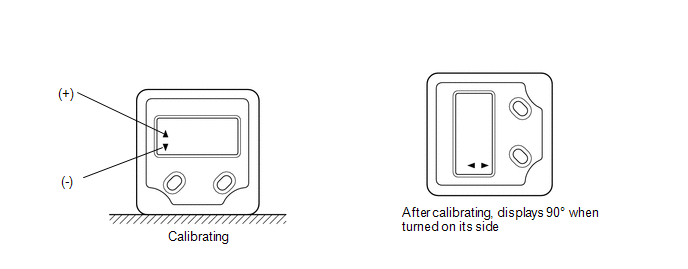

(8) Calibrate the digital angle gauge

Adjust the angle of the digital angle gauge until it reads the same value of the floor surface inclination, then press the "ZERO" switch to memorize the zero point (level with floor surface).

NOTICE:

Before pressing the "ZERO" switch, confirm that the digital angle gauge reading is positive if the floor angle inclination is positive, and negative if the floor angle inclination is negative.

(c) Prepare the digital angle gauge

(1) Attach the digital angle gauge attachment to the digital angle gauge.

SST: 09989-00020

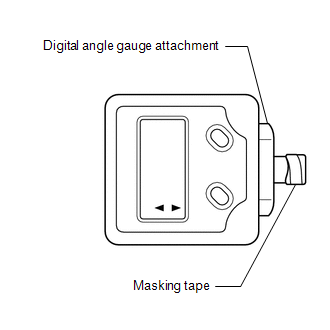

(2) Attach masking tape to the digital angle gauge attachment.

(d) Remove all luggage from the vehicle.

(e) Adjust the tire inflation pressure to the specified pressure.

Click here

SENSOR HEIGHT AND ALIGNMENT INSPECTION (PROCEDURE 3)

HINT:

Check if the installation angle of each ultrasonic sensor is appropriate.

(a) Preparation

(1) Visually check that the bumper, grille and ultrasonic sensors are installed properly and are not damaged.

NOTICE:

If the bumper, grille or any ultrasonic sensor is not installed correctly, the calibration may not be able to be completed.

(2) Check the tire pressures and adjust them if necessary.

Click here

NOTICE:

  • Ensure that the vehicle is level in an area with no wind.
  • Do not lean on the vehicle.
  • Do not do anything that may affect the level of the vehicle during the calibration, such as getting in or out of the vehicle, or adding or removing luggage.

(b) Sensor height and alignment inspection

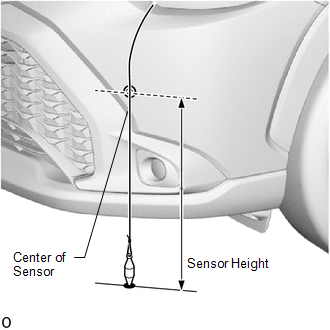

(c) Measure the installation height of the sensors.

Standard Height (Front Bumper) (except Sport Type):

Sensor Location

Sensor Height

Front Center Ultrasonic Sensor

529.8 to 605.1 mm (20.9 to 23.8 in.)

Front Corner Ultrasonic Sensor

567.5 to 643.5 mm (22.3 to 25.3 in.)

Standard Height (Rear Bumper) (except Sport Type):

Sensor Location

Sensor Height

Rear Center Ultrasonic Sensor

481.1 to 688.9 mm (18.9 to 27.1 in.)

Rear Corner Ultrasonic Sensor

463.6 to 668.5 mm (18.3 to 26.3 in.)

Standard Height (Front Bumper) (for Sport Type):

Sensor Location

Sensor Height

Front Center Ultrasonic Sensor

495.7 to 571.1 mm (19.5 to 22.5 in.)

Front Corner Ultrasonic Sensor

540.0 to 616.1 mm (21.3 to 24.3 in.)

Standard Height (Rear Bumper) (for Sport Type):

Sensor Location

Sensor Height

Rear Center Ultrasonic Sensor

468.5 to 688.4 mm (18.4 to 27.1 in.)

Rear Corner Ultrasonic Sensor

449.6 to 666.7 mm (17.7 to 26.2 in.)

NOTICE:

If the installation height of a sensor is not as specified, it may not be possible to measure the sensor angles correctly. If so, unload the vehicle and measure the installation height of the sensors again.

HINT:

Use the center of the sensor as the measuring point.

(d) Using the digital angle gauge, measure the angle of each sensor.

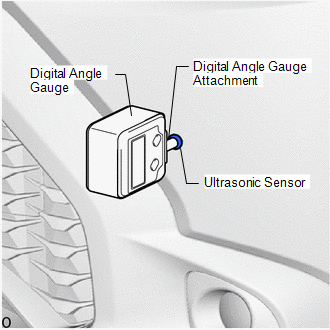

(1) Measure the angle of the front sensors as shown in the illustration.

NOTICE:

Ensure that the digital angle gauge is flush with the face of the sensor.

(2) Measure the angle of the rear sensors.

NOTICE:

Ensure that the digital angle gauge is flush with the face of the sensor.

(3) Confirm that the angles of the sensors are as specified.

NOTICE:

The sensor angle is the measured sensor angle subtracted from 90°.

HINT:

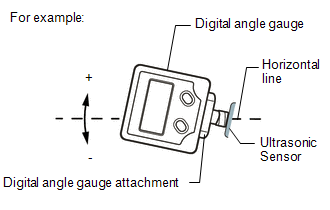

  • The digital angle gauge should indicate 90° when turned on its side.
  • If the face of the sensor is tilted upwards, the sensor angle will be positive.
Standard Angle (Front Bumper) (except Sport Type):

Sensor Location

Installation Angle

Front Center Ultrasonic Sensor

-2.90 to 3.20°

Front Corner Ultrasonic Sensor

2.60 to 8.70°

Standard Angle (Rear Bumper) (except Sport Type):

Sensor Location

Installation Angle

Rear Center Ultrasonic Sensor

1.40 to 7.50°

Rear Corner Ultrasonic Sensor

0.50 to 6.60°

Standard Angle (Front Bumper) (for Sport Type):

Sensor Location

Installation Angle

Front Center Ultrasonic Sensor

0.10 to 6.20°

Front Corner Ultrasonic Sensor

-1.60 to 4.50°

Standard Angle (Rear Bumper) (for Sport Type):

Sensor Location

Installation Angle

Rear Center Ultrasonic Sensor

1.80 to 7.90°

Rear Corner Ultrasonic Sensor

5.80 to 12.00°

(4) If the angle or height of the sensors is not as specified, confirm that the installation is correct and then perform the inspection again.

HINT:

Check the following.

  • Installation status of the front bumper assembly (rattling, uplifting)
  • Installation status of the rear bumper assembly (rattling, uplifting)
  • Fitting status of ultrasonic sensor and retainer
  • Installation status of ultrasonic sensor cushion (uplifting, deformed)
  • Installation status of the ultrasonic sensor retainer (rattling, uplifting)

REGISTRATION (PROCEDURE 4)

(a) Preparation

(1) Confirm that the following DTCs are not output.

System

Proceed to

Intuitive Parking Assist System

Parking Support Brake System

NOTICE:

If DTC C1AE187, C1AE287, C1AE387, C1AE487, C1AE687, C1AE787, C1AE887 or C1AE987 are output at this point, it is not a malfunction. Proceed with the calibration.

(b) Connect the GTS to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the GTS on.

(e) Enter the following menus: Body Electrical / Clearance Warning / Utility.

Body Electrical > Clearance Warning > Utility

Tester Display

ECU Calibration

(f) According to the display on the GTS, perform calibration.

HINT:

If "Battery or Steering Sensor" is selected, further calibration is not required. (Bumper type registration is not required.)

(g) Enter the bumper type using the GTS.

Bumper Type

Value

Standard

1

Sports

2

HINT:

If the clearance warning ECU assembly is replaced or removed and installed, it is necessary to perform bumper type registration.

(h) Using the GTS, enter the measured sensor values.

NOTICE:

The sensor angle is the measured sensor angle subtracted from 90°.

HINT:

The digital angle gauge should indicate 90° when turned on its side.

(i) Disconnect the GTS from the DLC3.
