TERMINALS OF ECU

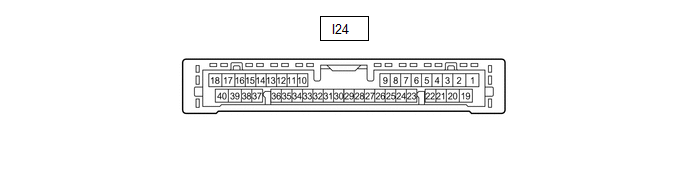

CLEARANCE WARNING ECU ASSEMBLY

(a) Disconnect the I24 clearance warning ECU assembly connector.

(b) Measure the voltage and resistance on the wire harness side connector according to the value(s) in the table below.

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

I24-1 (IG) - I24-31 (E)

IG power source signal

Ignition switch off

Below 1 V

Ignition switch ON

10.5 to 16 V

I24-31 (E) - Body ground

Ground

Always

Below 1 Ω

(c) Reconnect the I24 clearance warning ECU assembly connector.

(d) Measure the voltage and check for pulses according to the value(s) in the table below.

Terminal No. (Symbol)

Terminal Description

Condition

Specified Condition

I24-2 (BOF) - I24-31 (E)

Power source for front sensor circuit

  • Ignition switch ON
  • Parking support brake system on

11 to 14 V

I24-4 (SOF) - I24-31 (E)

Front sensor communication signal (Front clearance sonar sensor)

  • Ignition switch ON
  • Parking support brake system on
  • Shift lever in any position other than P
  • Vehicle speed is less than approximately 10 km/h (6 mph)

Pulse generation

(Refer to waveform 1)

I24-3 (E5) - I24-31 (E)

Ground for front clearance sonar

Always

Below 1 Ω

I24-19 (BOR) - I24-31 (E)

Power source for rear sensor circuit

  • Ignition switch ON
  • Parking support brake system on

11 to 14 V

I24-21 (SOR) - I24-31 (E)

Rear sensor communication signal (Rear clearance sonar sensor)

  • Ignition switch ON
  • Parking support brake system on
  • Shift lever in R

Pulse generation

(Refer to waveform 3)

I24-20 (E1) - I24-31 (E)

Ground for rear clearance sonar

Always

Below 1 Ω

(e) Using an oscilloscope, check waveform 1.

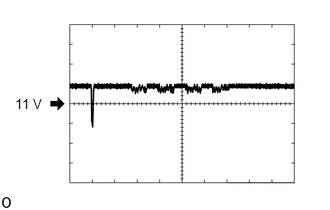

(1) Waveform 1 (Reference)

Item

Content

Measurement terminal

I24-4 (SOF) - I24-31 (E)

Measurement setting

1 V/DIV., 100 μs./DIV.

Condition

  • Ignition switch ON
  • Parking support brake system on
  • Shift lever in any position other than P
  • Vehicle speed is less than approximately 10 km/h (6 mph)

(f) Using an oscilloscope, check waveform 3.

(1) Waveform 3 (Reference)

Item

Content

Measurement terminal

I24-21 (SOR) - I24-31 (E)

Measurement setting

1 V/DIV., 100 μs./DIV.

Condition

  • Ignition switch ON
  • Parking support brake system on
  • Shift lever in R

ECM (for Gasoline Model)

Click here

COMBINATION METER ASSEMBLY

Click here

BLIND SPOT MONITOR SENSOR RH (A)

Click here

BLIND SPOT MONITOR SENSOR LH (B)

Click here

HYBRID VEHICLE CONTROL ECU (for HEV Model)

Click here
