Toyota Corolla Cross (2022-2024) Service Manual / Drivetrain / K120f (cvt) / Shift Lever / Removal

REMOVAL

CAUTION / NOTICE / HINT

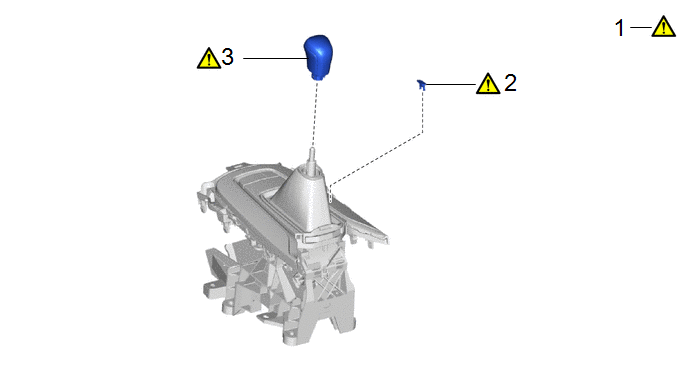

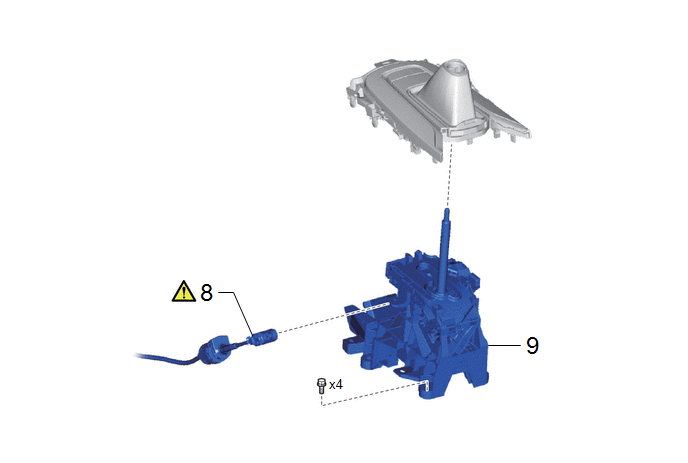

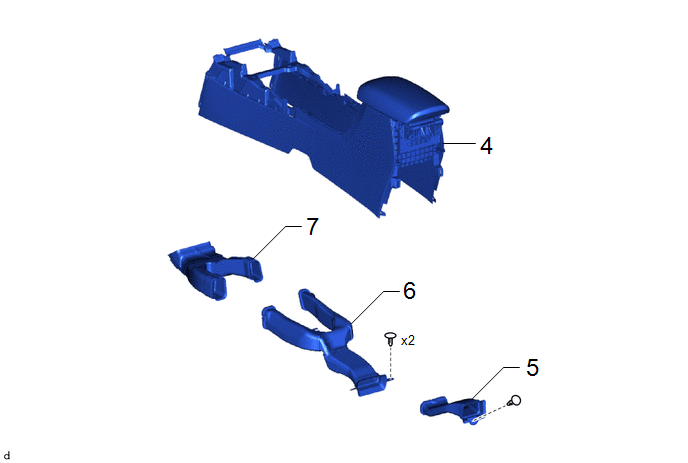

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

SECURE VEHICLE

-

-

-

2

SHIFT LOCK RELEASE BUTTON COVER

33554C

-

-

3

SHIFT LEVER KNOB SUB-ASSEMBLY

33504F

-

-

Procedure

Part Name Code

4

CONSOLE BOX ASSEMBLY

58810J

-

-

-

5

NO. 3 CONSOLE BOX DUCT

58863A

-

-

-

6

NO. 2 CONSOLE BOX DUCT

58862B

-

-

-

7

NO. 1 CONSOLE BOX DUCT

58861B

-

-

-

Procedure

Part Name Code

8

TRANSMISSION CONTROL CABLE ASSEMBLY

33820B

-

-

9

TRANSMISSION FLOOR SHIFT ASSEMBLY

-

-

-

-

PROCEDURE

1. SECURE VEHICLE

Click here

2. REMOVE SHIFT LOCK RELEASE BUTTON COVER

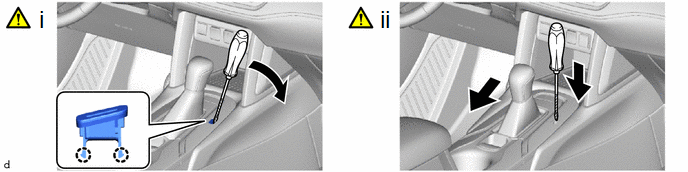

(1) Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the position indicator housing assembly.

NOTICE:

Be careful not to damage the shift lock release button cover and position indicator housing assembly.

(2) Using a screwdriver with its tip wrapped with protective tape, push the shift lock release button to move the shift lever to N.

NOTICE:

Be careful not to damage the transmission floor shift assembly.

3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Click here

4. REMOVE CONSOLE BOX ASSEMBLY

Click here

5. REMOVE NO. 3 CONSOLE BOX DUCT

Click here

6. REMOVE NO. 2 CONSOLE BOX DUCT

Click here

7. REMOVE NO. 1 CONSOLE BOX DUCT

Click here

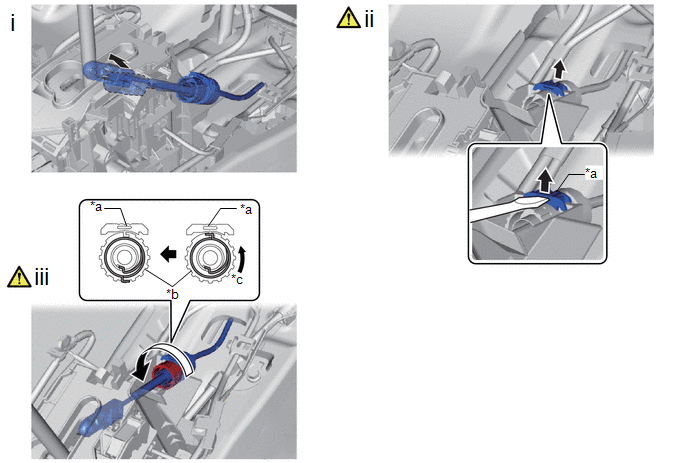

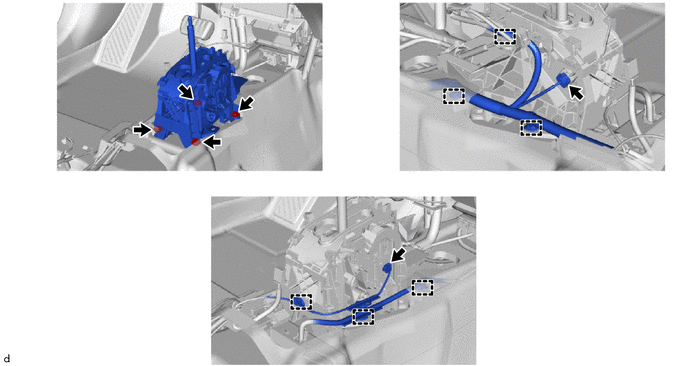

8. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

*a

Stopper

*b

Nut

*c

Turn approximately 180°

-

-

(1) Disconnect the end of the transmission control cable assembly from the transmission floor shift assembly.

(2) Using a screwdriver, pull out the stopper of the transmission control cable assembly.

NOTICE:

Do not remove the stopper. If it is removed, reinstall it to its original position.

(3) Rotate the nut of the transmission control cable assembly approximately 180° counterclockwise and, while holding the nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

NOTICE:

  • Do not turn the nut excessively as the internal spring may come off and the transmission control cable assembly will not be reusable.
  • Do not forcibly pull the transmission control select cable assembly into the cabin.

9. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
