DISASSEMBLY

CAUTION / NOTICE / HINT

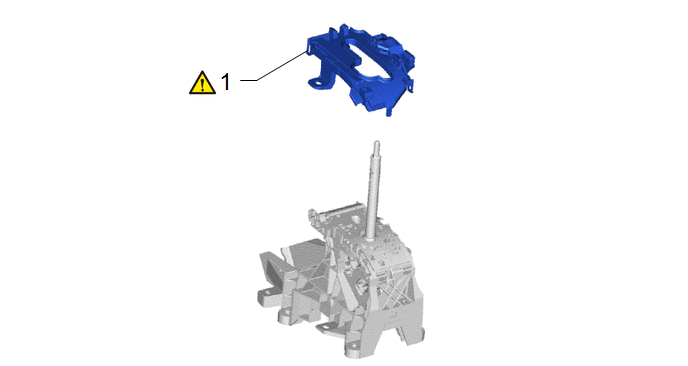

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY

33507

-

-

PROCEDURE

1. REMOVE SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY

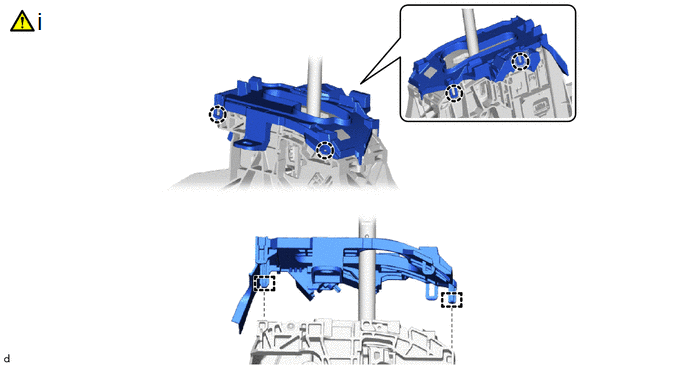

(1) Disengage the 4 claws and 2 guides to remove the shift lever housing bracket sub-assembly from the shift lock control unit assembly.

NOTICE:

Do not damage the shift lever housing bracket sub-assembly.
