Toyota Corolla Cross (2022-2026) Service Manual / Drivetrain / K120f (cvt) / Shift Lever / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

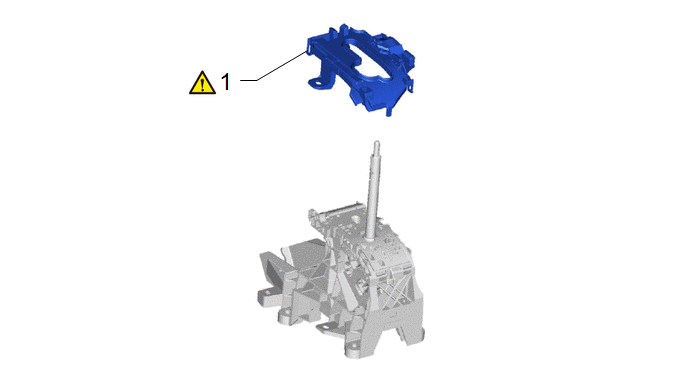

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY

33507

-

-

PROCEDURE

1. INSTALL SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY

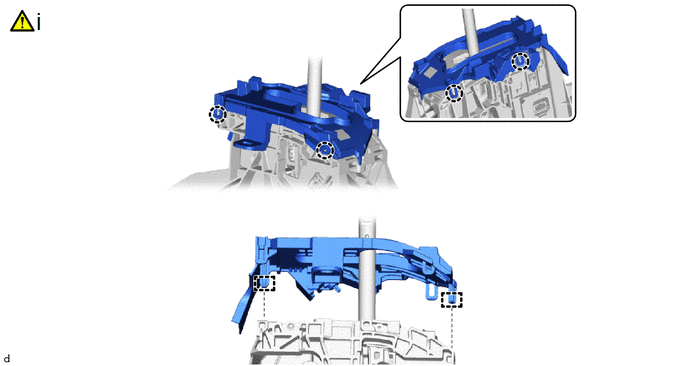

(1) Engage the 4 claws and 2 guides to install the shift lever housing bracket sub-assembly to the shift lock control unit assembly.

NOTICE:

Do not damage the shift lever housing bracket sub-assembly.
