Toyota Corolla Cross: Shift Lever Knob

Toyota Corolla Cross (2022-2025) Service Manual / Drivetrain / K120f (cvt) / Shift Lever Knob

Removal

REMOVAL

CAUTION / NOTICE / HINT

Procedure

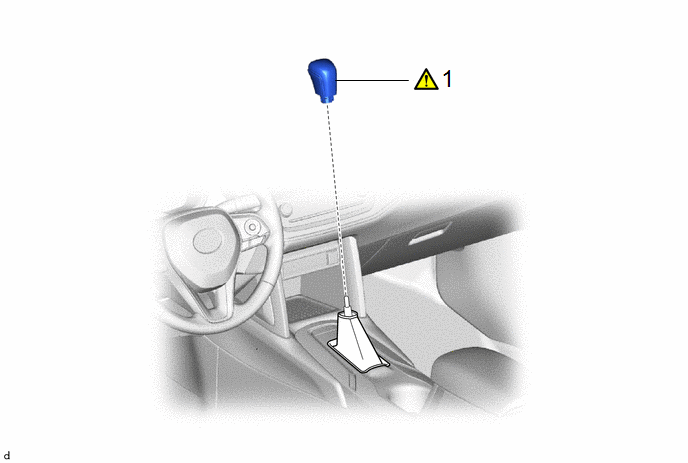

Part Name Code

1

SHIFT LEVER KNOB SUB-ASSEMBLY

33504F

-

-

PROCEDURE

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

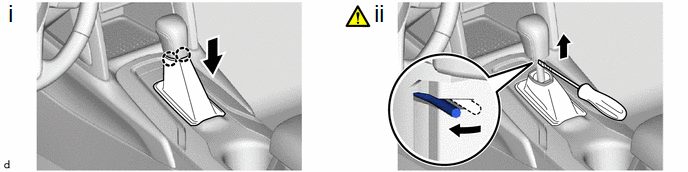

(1) Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.

(2) Using a screwdriver with its tip wrapped with protective tape, expand the LH side clip and pull out the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.

NOTICE:

Be careful not to damage the shift lever knob sub-assembly.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

Procedure

Part Name Code

1

SHIFT LEVER KNOB SUB-ASSEMBLY

33504F

-

-

PROCEDURE

1. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

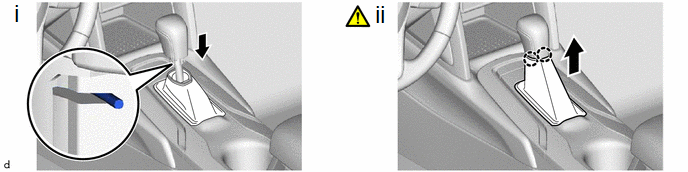

(1) Install the shift lever knob sub-assembly to the transmission floor shift assembly.

(2) Engage the 2 claws to connect the shifting hole cover sub-assembly.

NOTICE:

Make sure that the shifting hole cover sub-assembly does not twist after installing the shift lever knob sub-assembly.
