PRECAUTION

WHEN USING GTS

CAUTION:

  • Strictly obey all traffic rules and regulations.

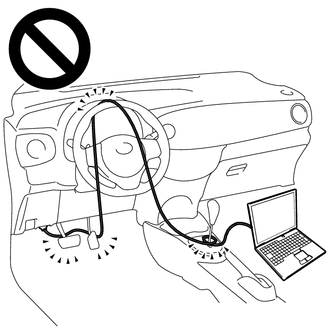

  • Do not drive the vehicle with the GTS cable contacting the pedals, shift lever or steering wheel.
  • Driving the vehicle with the GTS cable contacting these areas could impede vehicle control, resulting in a serious accident.

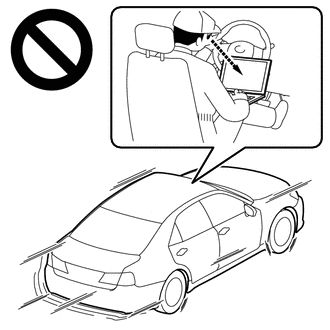

  • Do not operate the GTS while driving the vehicle.
  • Operating the GTS while driving the vehicle will prevent you from paying sufficient attention to vehicle surroundings, and could result in a serious accident.

INITIALIZATION

NOTICE:

When the ECM is replaced, update the ECU security key.

Click here

PRECAUTIONS FOR INSPECTING HYBRID CONTROL SYSTEM

(a) Refer to Hybrid Control System.

Click here

NOTICE FOR HYBRID CONTROL SYSTEM ACTIVATION

(a) Refer to Hybrid Control System.

Click here
