Toyota Corolla Cross: Parts Location

PARTS LOCATION

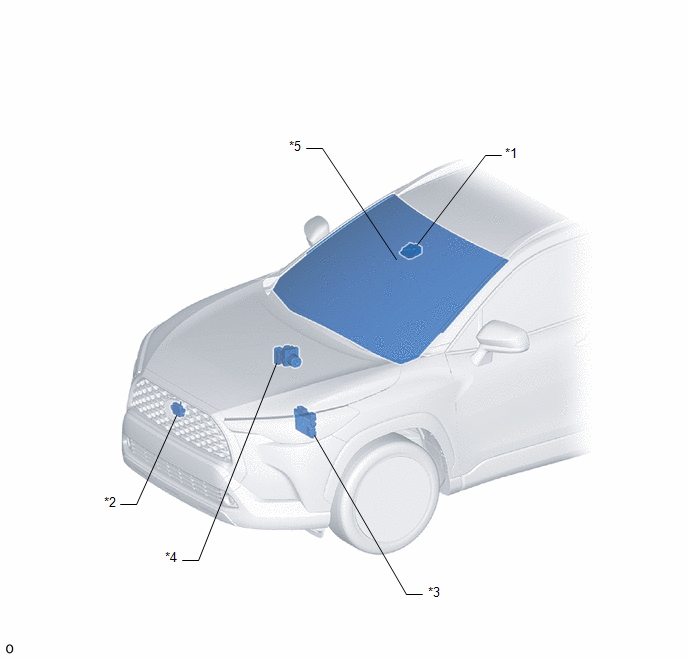

ILLUSTRATION

*1

FORWARD RECOGNITION CAMERA

*2

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*3

ECM

*4

SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

*5

WINDSHIELD GLASS (HEATER)

-

-

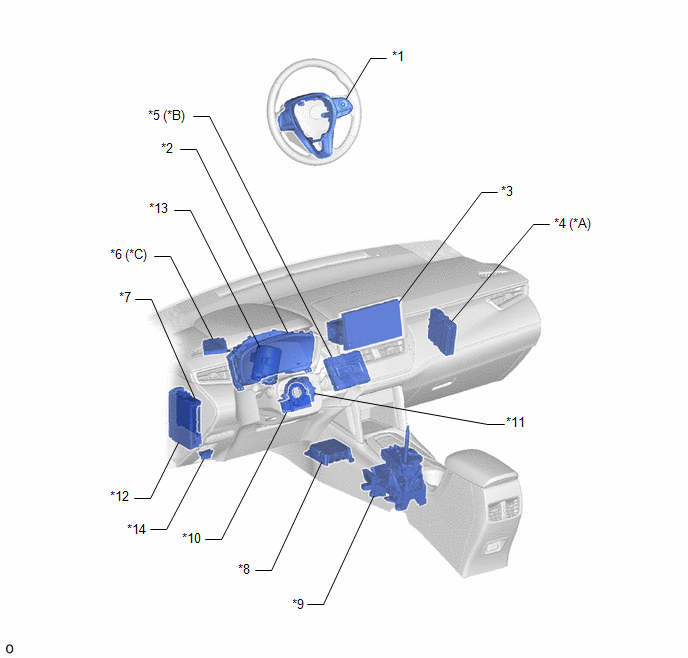

ILLUSTRATION

*A

for HEV Model

*B

w/ Telematics System

*C

w/ Parking Support Brake System

-

-

*1

STEERING PAD SWITCH ASSEMBLY

*2

COMBINATION METER ASSEMBLY

*3

RADIO AND DISPLAY RECEIVER ASSEMBLY

*4

HYBRID VEHICLE CONTROL ECU

*5

TELEMATICS TRANSCEIVER

*6

CLEARANCE WARNING ECU ASSEMBLY

*7

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*8

AIRBAG SENSOR ASSEMBLY

*9

TRANSMISSION FLOOR SHIFT ASSEMBLY

*10

STEERING SENSOR

*11

SPIRAL CABLE SUB-ASSEMBLY

*12

POWER DISTRIBUTION BOX ASSEMBLY

- ECU-IGR NO. 2 FUSE

*13

POWER STEERING ECU ASSEMBLY

*14

DLC3
