Toyota Corolla Cross: License Plate Light Bulb

Removal

REMOVAL

CAUTION / NOTICE / HINT

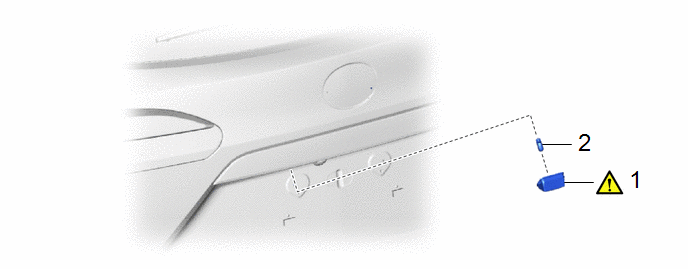

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

LICENSE PLATE LIGHT LENS

-

-

-

2

LICENSE PLATE LIGHT BULB

81270B

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

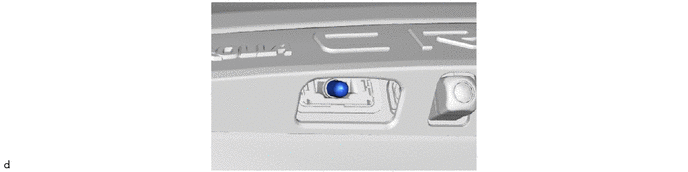

1. REMOVE LICENSE PLATE LIGHT LENS

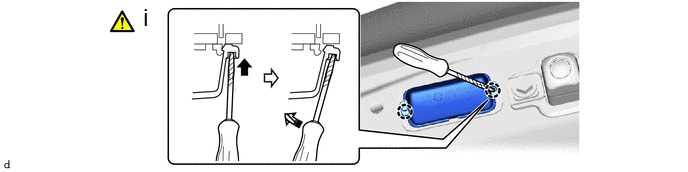

(1) Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the license plate light lens as shown in the illustration.

2. REMOVE LICENSE PLATE LIGHT BULB

Installation

INSTALLATION

CAUTION / NOTICE / HINT

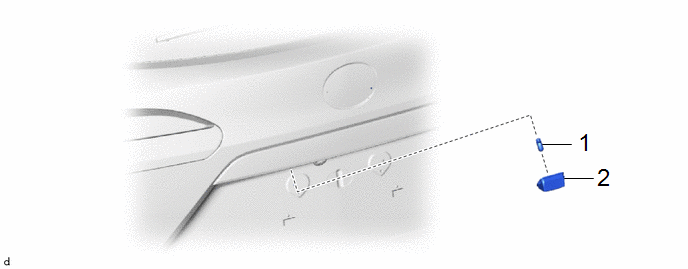

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

LICENSE PLATE LIGHT BULB

81270B

-

-

-

2

LICENSE PLATE LIGHT LENS

-

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL LICENSE PLATE LIGHT BULB

2. INSTALL LICENSE PLATE LIGHT LENS
