INSTALLATION

CAUTION / NOTICE / HINT

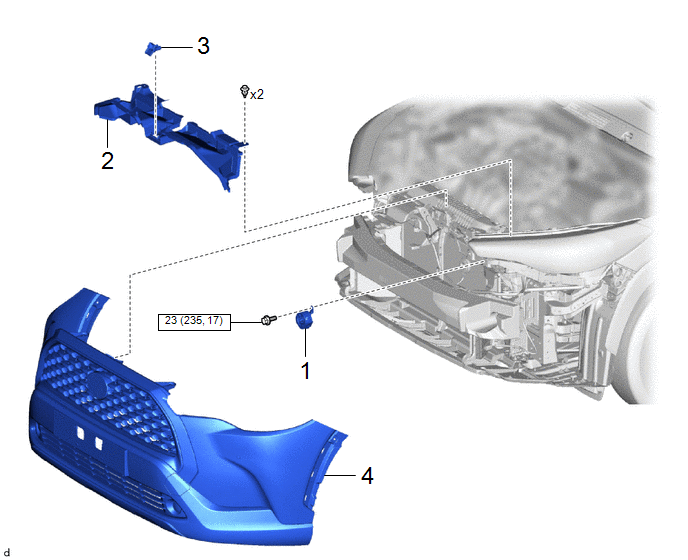

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	VEHICLE APPROACHING SPEAKER ASSEMBLY	86570	-	-	-
2	NO. 1 RADIATOR TO SUPPORT SEAL	16561C	-	-	-
3	LOWER NO. 2 FRONT BUMPER RETAINER	52527C	-	-	-
4	FRONT BUMPER ASSEMBLY	-	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

PROCEDURE

1. INSTALL VEHICLE APPROACHING SPEAKER ASSEMBLY

Torque:

23 N·m {235 kgf·cm, 17 ft·lbf}

2. INSTALL NO. 1 RADIATOR TO SUPPORT SEAL

3. INSTALL LOWER NO. 2 FRONT BUMPER RETAINER

4. INSTALL FRONT BUMPER ASSEMBLY

for Sport Package:
Click here
except Sport Package:
Click here
