Removal

REMOVAL

CAUTION / NOTICE / HINT

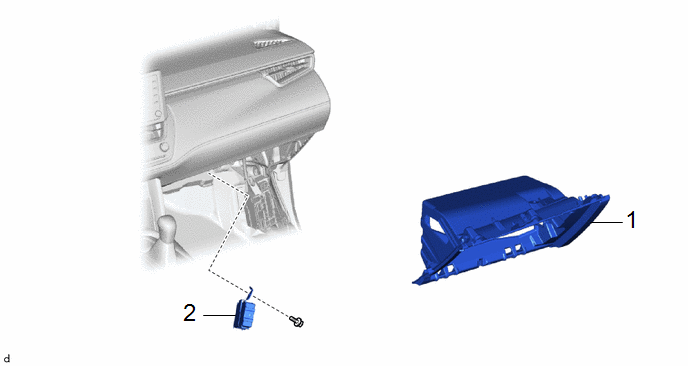

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL	55433B	-	-	-
2	VEHICLE APPROACHING SPEAKER CONTROLLER	86572	-	-	-

PROCEDURE

1. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click here

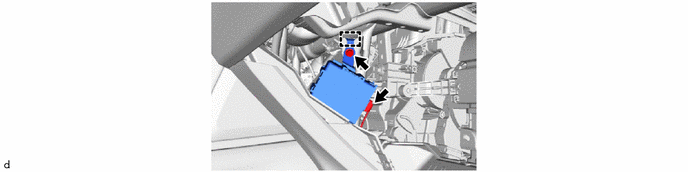

2. REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

Installation

INSTALLATION

CAUTION / NOTICE / HINT

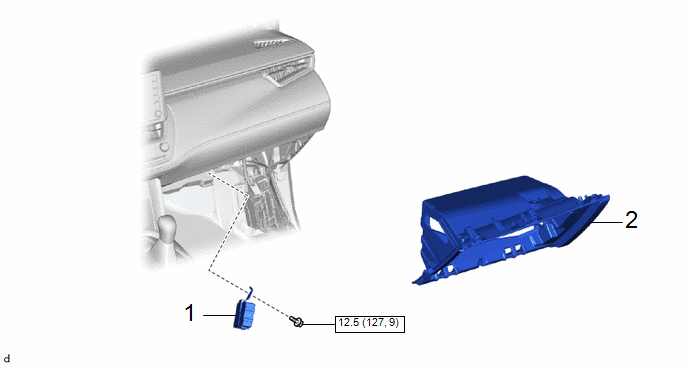

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	VEHICLE APPROACHING SPEAKER CONTROLLER	86572	-	-	-
2	LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL	55433B	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

PROCEDURE

1. INSTALL VEHICLE APPROACHING SPEAKER CONTROLLER

Torque:

12.5 N·m {127 kgf·cm, 9 ft·lbf}

2. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click here
