INSTALLATION

CAUTION / NOTICE / HINT

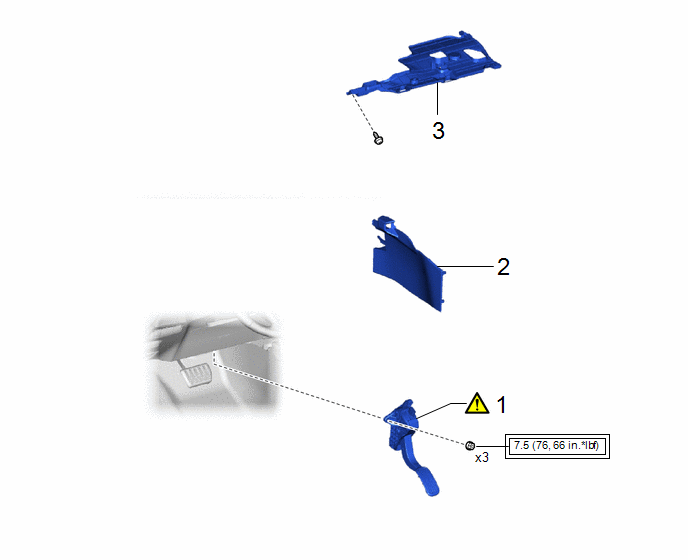

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

ACCELERATOR PEDAL SENSOR ASSEMBLY

78110K

-

-

2

NO. 1 FRONT CONSOLE BOX INSERT

58816D

-

-

-

3

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

55606

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

PROCEDURE

1. INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY

NOTICE:

  • Avoid physical shock to the accelerator pedal sensor assembly.
  • Do not disassemble the accelerator pedal sensor assembly.
  • The accelerator pedal sensor assembly does not require lubrication.
  • Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

2. INSTALL NO. 1 FRONT CONSOLE BOX INSERT

Click here

3. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here
