Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

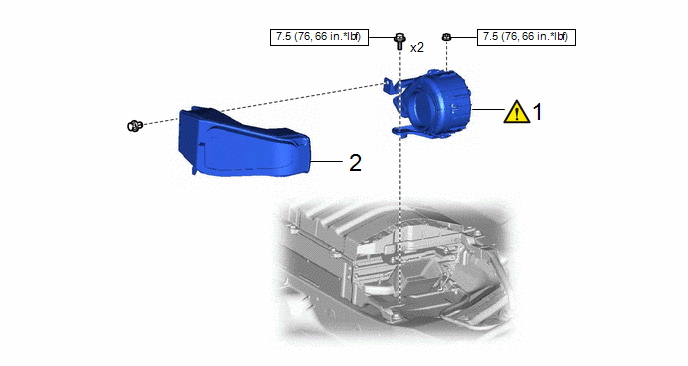

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

BATTERY COOLING BLOWER ASSEMBLY

G9230

-

-

2

NO. 1 EV BATTERY INTAKE DUCT

G92D1A

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

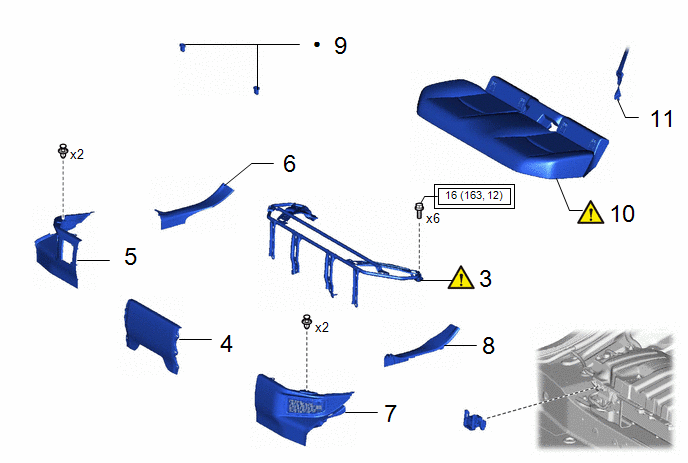

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

3

REAR SEAT CUSHION LEG SUB-ASSEMBLY

71033

-

-

4

REAR UNDER COVER

76971G

-

-

-

5

REAR UNDER SIDE COVER RH

76973F

-

-

-

6

REAR DOOR SCUFF PLATE RH

67917A

-

-

-

7

REAR UNDER SIDE COVER LH

76974F

-

-

-

8

REAR DOOR SCUFF PLATE LH

67918A

-

-

-

9

REAR SEAT CUSHION LOCK HOOK

72693

-

-

-

10

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

-

-

-

11

REAR CENTER SEAT OUTER BELT ASSEMBLY

73350C

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

PROCEDURE

1. INSTALL BATTERY COOLING BLOWER ASSEMBLY

NOTICE:

  • Be sure not to touch the fan part of the battery cooling blower assembly.
  • Do not lift the battery cooling blower assembly using the wire harness.

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

2. INSTALL NO. 1 EV BATTERY INTAKE DUCT

3. INSTALL REAR SEAT CUSHION LEG SUB-ASSEMBLY

Click here

4. INSTALL REAR UNDER COVER

Click here

5. INSTALL REAR UNDER SIDE COVER RH

6. INSTALL REAR DOOR SCUFF PLATE RH

7. INSTALL REAR UNDER SIDE COVER LH

8. INSTALL REAR DOOR SCUFF PLATE LH

9. INSTALL REAR SEAT CUSHION LOCK HOOK

Click here

10. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

Click here

11. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

Click here
