Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

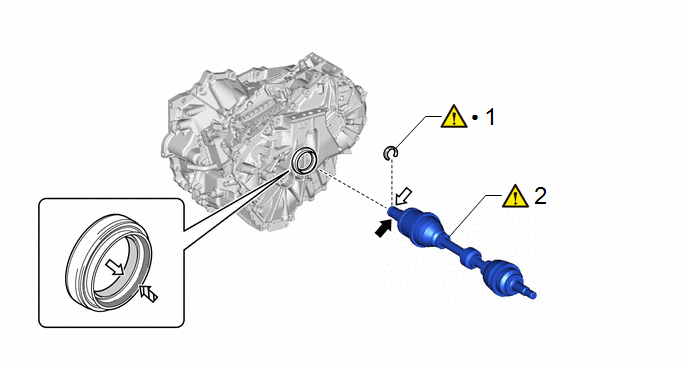

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT DRIVE SHAFT HOLE SNAP RING

43420G

-

-

2

INSTALL FRONT DRIVE SHAFT ASSEMBLY

43420

-

-

Non-reusable part

Toyota Genuine e-Transaxle Fluid TE

MP Grease

Toyota Genuine Oil Seal Side Lip Grease

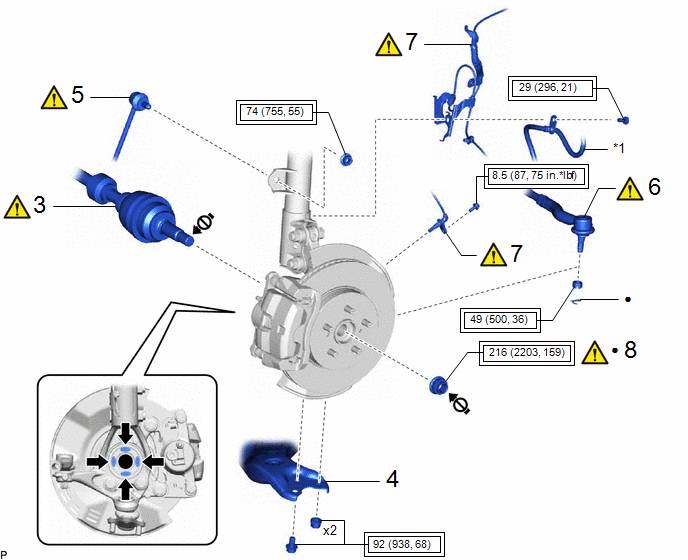

Procedure

Part Name Code

3

CONNECT FRONT DRIVE SHAFT ASSEMBLY

43420

-

-

4

FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

48069

-

-

-

5

FRONT STABILIZER LINK ASSEMBLY

48810

-

-

6

TIE ROD END SUB-ASSEMBLY

45047

-

-

7

FRONT SPEED SENSOR

89543

-

-

8

FRONT AXLE SHAFT NUT

43502H

-

-

*1

FRONT FLEXIBLE HOSE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

Toyota Body Grease W

Do not apply lubricants to the threaded parts

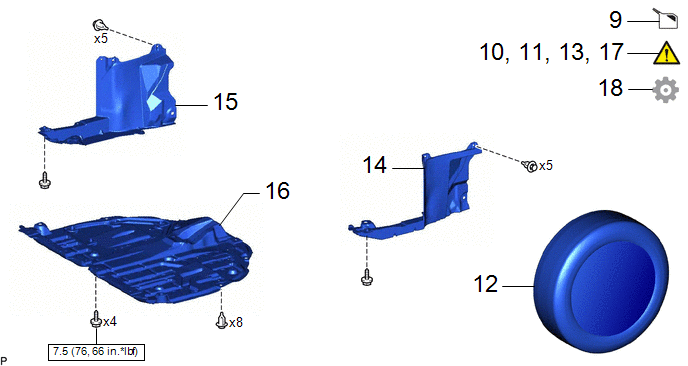

Procedure

Part Name Code

9

ADD HYBRID TRANSAXLE FLUID

-

-

-

10

INSPECT HYBRID TRANSAXLE FLUID

-

-

-

11

INSPECT FOR HYBRID TRANSAXLE FLUID LEAK

-

-

-

12

FRONT WHEELS

-

-

-

-

13

INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

-

-

-

14

REAR ENGINE UNDER COVER LH

51444A

-

-

-

15

REAR ENGINE UNDER COVER RH

51443C

-

-

-

16

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

17

CHECK FOR SPEED SENSOR SIGNAL

-

-

-

18

PERFORM INITIALIZATION

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

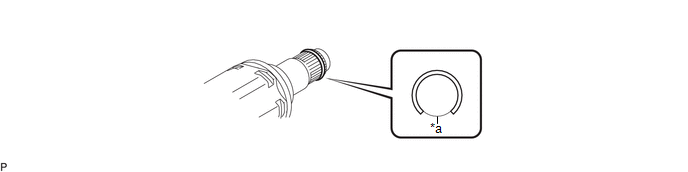

1. INSTALL FRONT DRIVE SHAFT HOLE SNAP RING

NOTICE:

Face the end gap of the front drive shaft hole snap ring downward.

*a

End Gap

-

-

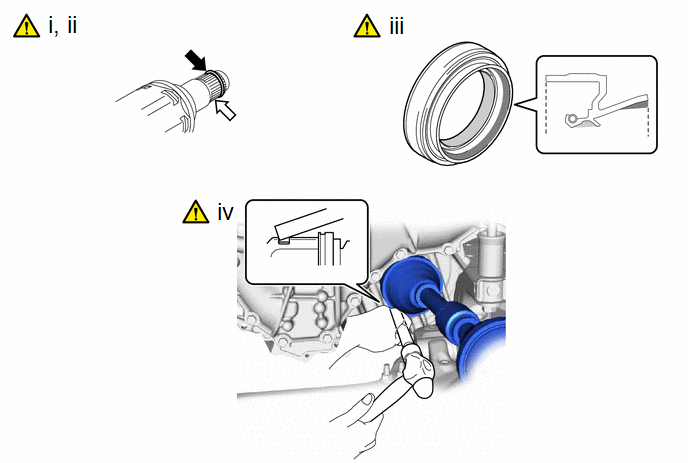

2. INSTALL FRONT DRIVE SHAFT ASSEMBLY

MP Grease

Toyota Genuine e-Transaxle Fluid TE

MP Grease

Toyota Genuine Oil Seal Side Lip Grease

(1) Coat the snap ring of the front drive inboard joint assembly with MP grease.

(2) Coat the splines of the front drive inboard joint assembly with Toyota genuine e-Transaxle fluid TE.

(3) Coat the lip of the front drive shaft oil seal with MP grease and Toyota genuine oil seal side lip grease as shown in the illustration.

(4) Align the inboard joint splines, and using a brass bar and a hammer, install the front drive shaft assembly.

NOTICE:

  • Face the end gap of the front drive shaft hole snap ring downward.
  • Do not damage the front drive shaft oil seal.
  • Do not damage the front axle inboard joint boot.
  • Make sure to center the front drive shaft assembly during installation to prevent damage to the front drive shaft hole snap ring.

HINT:

Confirm whether the drive shaft is securely driven in by checking the reaction force and sound.

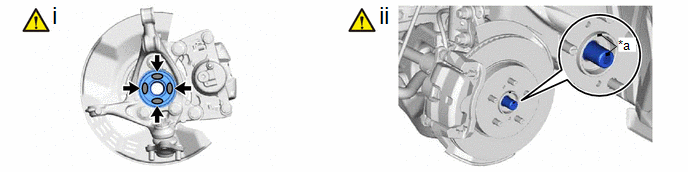

3. CONNECT FRONT DRIVE SHAFT ASSEMBLY

*a

Matchmark

-

-

Toyota Body Grease W

-

-

(1) Apply 0.1 to 0.3 g (0.00353 to 0.0105 oz.) of Toyota Body Grease W to each of the 4 areas shown in the illustration.

(2) Align the matchmarks and install the front drive shaft assembly to the front axle assembly.

NOTICE:

  • Do not push the front axle assembly towards the outside of the vehicle any further than necessary.
  • Check that there is no foreign matter on the deflector or contact surfaces.
  • Do not damage the front axle outboard joint boot.
  • Do not damage the front disc brake dust cover.
  • Do not damage the deflector.

4. CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

Click here

5. INSTALL FRONT STABILIZER LINK ASSEMBLY

Click here

6. CONNECT TIE ROD END SUB-ASSEMBLY

Click here

7. INSTALL FRONT SPEED SENSOR

Click here

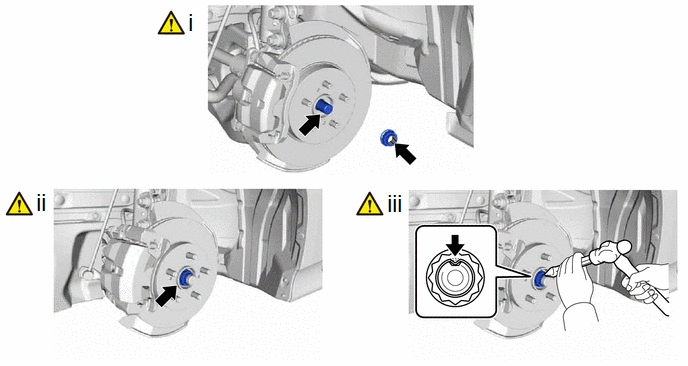

8. INSTALL FRONT AXLE SHAFT NUT

(1) Clean the threaded parts on the front drive shaft assembly and a new front axle shaft nut using non-residue solvent.

NOTICE:

  • Be sure to perform this work even when using a new front drive shaft assembly.
  • Keep the threaded parts free of oil and foreign matter.

(2) While applying the brakes, using a 30 mm deep socket wrench, install the front axle shaft nut.

Torque:

216 N·m {2203 kgf·cm, 159 ft·lbf}

(3) Using a chisel and a hammer, stake the front axle shaft nut.

9. ADD HYBRID TRANSAXLE FLUID

Click here

10. INSPECT HYBRID TRANSAXLE FLUID

Click here

11. INSPECT FOR HYBRID TRANSAXLE FLUID LEAK

12. INSTALL FRONT WHEELS

Click here

13. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

Click here

14. INSTALL REAR ENGINE UNDER COVER LH

15. INSTALL REAR ENGINE UNDER COVER RH

16. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

17. CHECK FOR SPEED SENSOR SIGNAL

Click here

18. PERFORM INITIALIZATION

Parking assist monitor system

Automatic headlight beam level control system
