Toyota Corolla Cross: Inspection
INSPECTION
CAUTION / NOTICE / HINT
PROCEDURE
1. INSPECT FUEL LID LOCK WITH MOTOR ASSEMBLY
| (a) Check the operation of the fuel lid lock with motor assembly.
(1) Apply auxiliary battery voltage to the fuel lid lock with motor assembly connector, and check that the fuel lid lock with motor assembly operates smoothly as follows.
OK: |
Auxiliary Battery Connection |
Specified Condition | |
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Terminal 2 |
Open Operation | If the result is not as specified, replace the fuel lid lock with motor assembly.
(2) Measure the shaft stroke. Standard: |
Area | Condition |
Specified Condition | |
A | Lever pulled |
15.45 to 16.65 mm (0.608 to 0.656 in.) |
If the result is not as specified, replace the fuel lid lock with motor assembly. |
 |
|

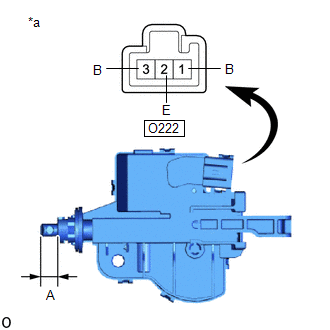

*a | Component without harness connected
(Fuel Lid Lock with Motor Assembly) | | |
(b) Check the resistance of the limit switch.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|
3 (B) - 2 (E) | Fuel Lid Open |
Below 1 Ω |
|
3 (B) - 2 (E) | Fuel Lid Close |
10 kΩ or higher |
If the result is not as specified, replace the fuel lid lock with motor assembly.
