Toyota Corolla Cross: Removal

Toyota Corolla Cross (2022-2025) Service Manual / Engine & Hybrid System / Stop And Start / Backup Boost Converter / Removal

REMOVAL

CAUTION / NOTICE / HINT

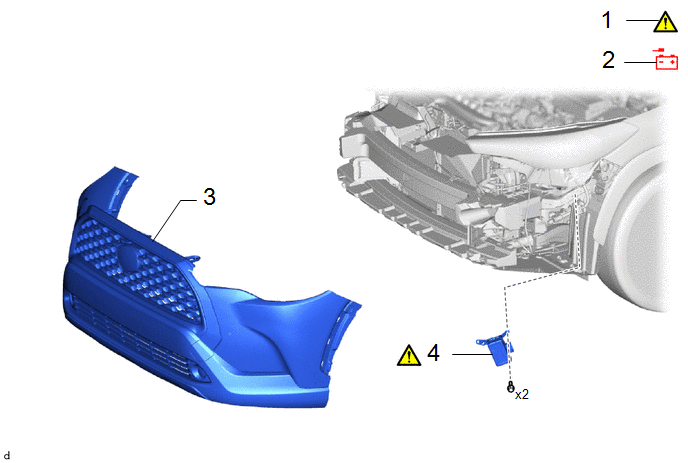

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	FRONT BUMPER ASSEMBLY	-	-	-	-
4	ECO RUN VEHICLE CONVERTER ASSEMBLY	G92C0B		-	-

CAUTION / NOTICE / HINT

NOTICE:

After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Effect/Inoperative Function When Necessary Procedures are not Performed

Necessary Procedures

Link

Power door lock control system

Back door opener

Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

Power back door system

Fully close the back door by hand.

HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.

Air conditioning system

After the ignition switch is turned to ON, the servo motor standard position is recognized.

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

3. REMOVE FRONT BUMPER ASSEMBLY

Click here

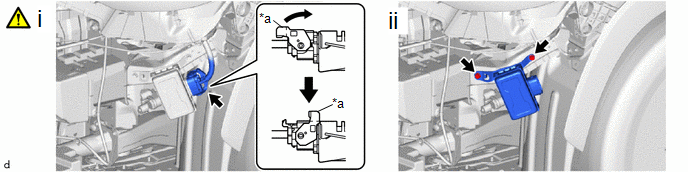

4. REMOVE ECO RUN VEHICLE CONVERTER ASSEMBLY

Lock Lever

(1) Move the lock lever as shown in the illustration and disconnect the eco run vehicle converter assembly connector.

(2) Remove the 2 bolts and eco run vehicle converter assembly.
