Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Door / Hatch / Fuel Lid Opener Motor Assembly / Installation

INSTALLATION

CAUTION / NOTICE / HINT

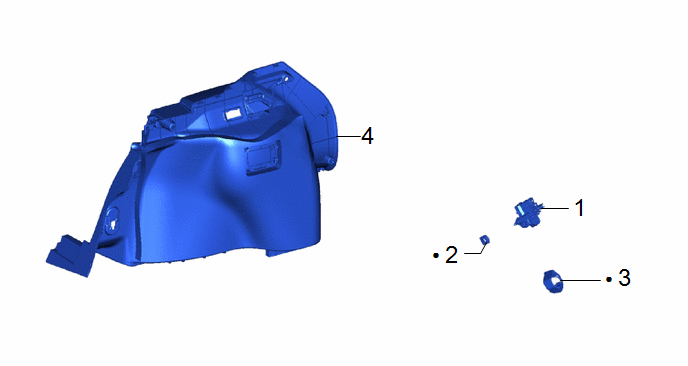

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FUEL LID LOCK WITH MOTOR ASSEMBLY

77030A

-

-

-

2

FUEL FILLER OPENING LID LOCK RETAINER

77377

-

-

-

3

FUEL FILLER OPENING LID LOCK COVER

77378A

-

-

-

4

DECK TRIM SIDE PANEL ASSEMBLY LH

64740C

-

-

-

●

Non-reusable part

-

-

PROCEDURE

1. INSTALL FUEL LID LOCK WITH MOTOR ASSEMBLY

2. INSTALL FUEL FILLER OPENING LID LOCK RETAINER

3. INSTALL FUEL FILLER OPENING LID LOCK COVER

4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
