Toyota Corolla Cross: Fuel Lid Opener Switch

Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Door / Hatch / Fuel Lid Opener Switch

Removal

REMOVAL

CAUTION / NOTICE / HINT

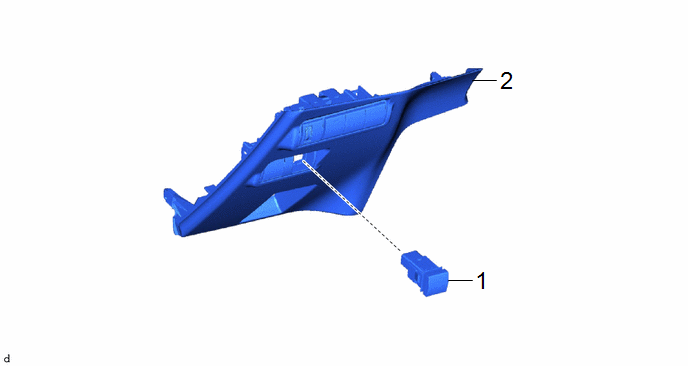

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

55432D

-

-

-

2

FUEL LID OPENER SWITCH

84841A

-

-

-

PROCEDURE

1. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click here

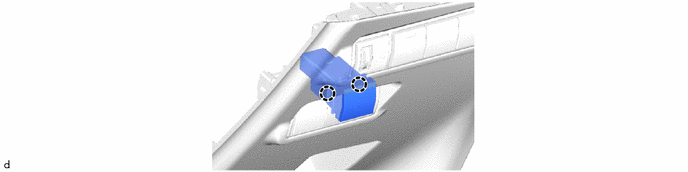

2. REMOVE FUEL LID OPENER SWITCH

Inspection

INSPECTION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSPECT FUEL LID OPENER SWITCH

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

5 (IG) - 2 (E)

Pushed (ON)

Below 1 Ω

5 (IG) - 2 (E)

Not pushed (OFF)

10 kΩ or higher

If the result is not as specified, replace the fuel lid opener switch.

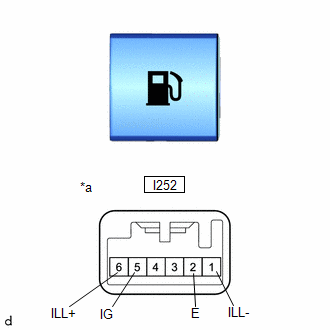

*a

Component without harness connected

(Fuel Lid Opener Switch)

(b) Check that the switch illuminates.

(1) Apply battery voltage to the fuel lid opener switch and check that the switch illuminates.

OK:

Measurement Condition

Specified Condition

Battery positive (+) → 6 (ILL+)

Battery negative (-) → 1 (ILL-)

Illuminates

If the result is not as specified, replace the fuel lid opener switch.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FUEL LID OPENER SWITCH

84841A

-

-

-

2

LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

55432D

-

-

-

PROCEDURE

1. REMOVE FUEL LID OPENER SWITCH

2. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click here
