DISASSEMBLY

CAUTION / NOTICE / HINT

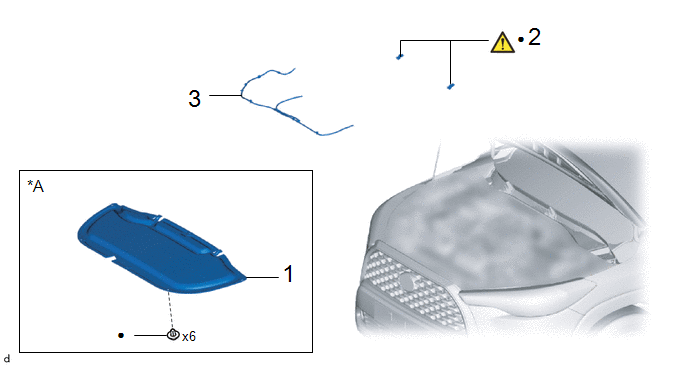

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

HOOD INSULATOR

53341B

-

-

-

2

WASHER NOZZLE SUB-ASSEMBLY

85035

-

-

3

WASHER HOSE ASSEMBLY

-

-

-

-

*A

w/ Hood Insulator

-

-

●

Non-reusable part

-

-

PROCEDURE

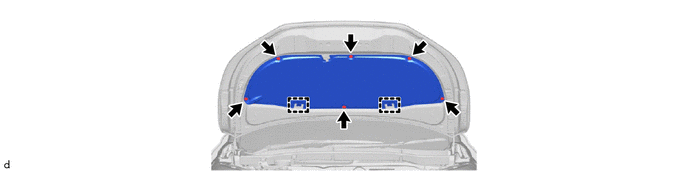

1. REMOVE HOOD INSULATOR (w/ Hood Insulator)

2. REMOVE WASHER NOZZLE SUB-ASSEMBLY

Click here

3. DISCONNECT WASHER HOSE ASSEMBLY
