Toyota Corolla Cross: Reassembly

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Door / Hatch / Hood / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

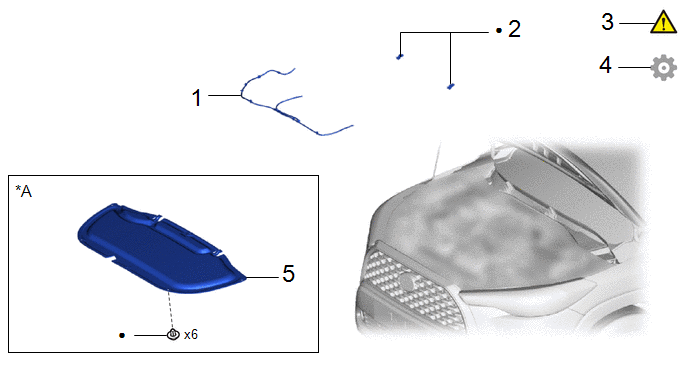

COMPONENTS (RESASSEMBLY)

Procedure

Part Name Code

1

WASHER HOSE ASSEMBLY

-

-

-

-

2

INSTALL WASHER NOZZLE SUB-ASSEMBLY

85035

-

-

-

3

INSPECT WASHER NOZZLE SUB-ASSEMBLY

85035

-

-

4

ADJUST WASHER NOZZLE SUB-ASSEMBLY

85035

-

-

5

HOOD INSULATOR

53341B

-

-

-

*A

w/ Hood Insulator

-

-

●

Non-reusable part

-

-

PROCEDURE

1. CONNECT WASHER HOSE ASSEMBLY

2. INSTALL WASHER NOZZLE SUB-ASSEMBLY

3. INSPECT WASHER NOZZLE SUB-ASSEMBLY

Click here

4. ADJUST WASHER NOZZLE SUB-ASSEMBLY

Click here

5. INSTALL HOOD INSULATOR (w/ Hood Insulator)
