Toyota Corolla Cross: Inspection
INSPECTION
PROCEDURE
1. INSPECT OIL PRESSURE AND TEMPERATURE SENSOR
(a) Check the oil pressure and temperature sensor output voltage.

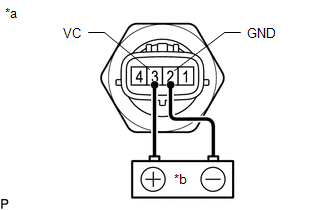

| (1) Apply 5 V between terminals 3 (VC) and 2 (GND).
NOTICE:
- Be careful when connecting the leads as the oil pressure and temperature sensor may be damaged if the leads are connected to the wrong terminals.
- Do not apply more than 6 V to terminals 3 (VC) or 2 (GND).
HINT: If a stable power supply is not available, connect 4 nickel-metal hydride batteries (1.2 V each) or equivalent in series. |
.png) |
|
*a | Component without harness connected
(Oil Pressure and Temperature Sensor) | |
*b | Voltage Applied between Terminals | | |

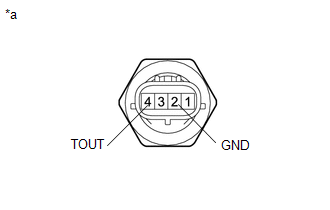

| (2) Measure the voltage between terminals. Standard Voltage: |
Tester Connection | Condition |
Specified Condition | |
4 (TOUT) - 2 (GND) |
20°C (68°F) | Approximately 1.5 to 2.5 V* |
*: The output voltage changes depending on the voltage applied to the terminals.
If the result is not as specified, replace the oil pressure and temperature sensor. |
.png) |
|
*a | Component without harness connected
(Oil Pressure and Temperature Sensor) | | |
