Toyota Corolla Cross (2022-2026) Service Manual / Engine & Hybrid System / M20a-fxs (lubrication) / Oil Pressure Switching Valve / Removal

REMOVAL

CAUTION / NOTICE / HINT

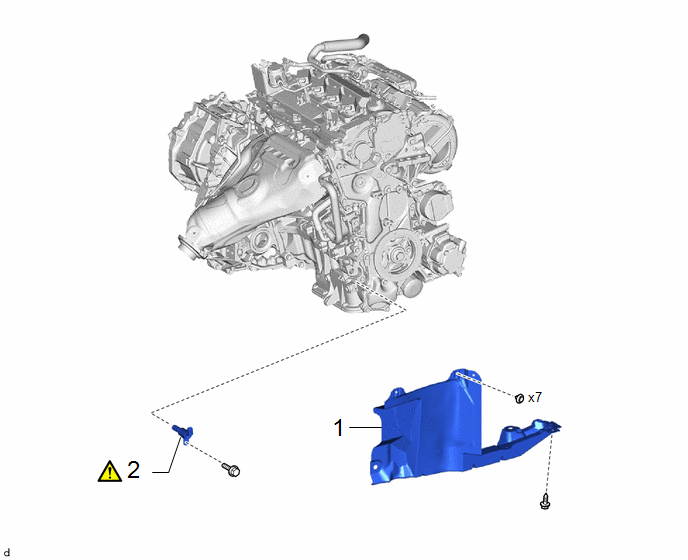

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR ENGINE UNDER COVER RH

51443C

-

-

-

2

OIL PRESSURE CONTROL VALVE ASSEMBLY

15250

-

-

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE REAR ENGINE UNDER COVER RH

Click here

2. REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY

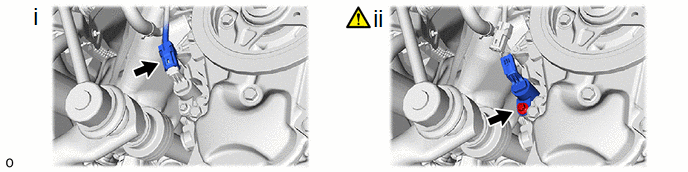

(1) Disconnect the oil pressure control valve assembly connector.

(2) Using an 8 mm socket wrench, remove the bolt and oil pressure control valve assembly from the No. 2 timing chain cover assembly.
