Toyota Corolla Cross: Brake Hold Standby Indicator Light Circuit

DESCRIPTION

The brake hold standby indicator light turns on if brake hold control is possible when the following conditions required for operation standby are met and the brake hold switch (electric parking brake switch assembly) is pressed while the ignition switch is ON.

  • Conditions required for operation standby:
    1. The driver door is closed.
    2. The driver seat belt is fastened.
    3. The system is normal.

HINT:

If a malfunction occurs in one of the following systems, the brake hold operated indicator light will blink. If this occurs, perform troubleshooting on the malfunctioning system.

  • Brake system
  • Electric parking brake system

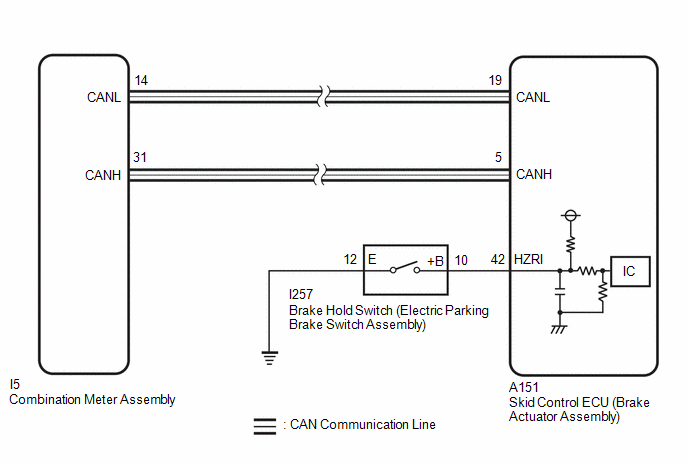

WIRING DIAGRAM

PROCEDURE

1.

PRE-CHECK

(a) If the brake hold standby indicator light does not illuminate even though the brake hold switch (electric parking brake switch assembly) is pushed, check that the brake hold function operation conditions are met.

  1. The driver door is closed.
  2. The driver seat belt is fastened.
  3. The system is normal.

HINT:

If a malfunction occurs in one of the following systems, the brake hold operated indicator light will blink. If this occurs, perform troubleshooting on the malfunctioning system.

  • Brake system
  • Electric parking brake system
NEXT

2.

READ VALUE USING GTS (BRAKE HOLD READY)

(a) Check the Data List using the GTS.

Chassis > Brake/EPB > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Brake Hold Ready

Brake hold control permission status

Not in stand-by mode / Stand-by mode

Not in stand-by mode: Brake hold function not operating (brake hold standby indicator light not illuminated)

Stand-by mode: Brake hold function stand-by state (brake hold standby indicator light illuminated)

-

Chassis > Brake/EPB > Data List

Tester Display

Brake Hold Ready

(b) All of the following brake hold operation conditions are met:

  1. The driver door is closed.
  2. The driver seat belt is fastened.

(c) Check the brake hold standby indicator light and mode condition on the GTS changes according to brake hold switch (electric parking brake switch assembly) operation.

Standard:

Brake Hold Switch (Electric Parking Brake Switch Assembly) Operation

Mode Condition Display

Brake Hold Standby Indicator Light

Not pressed

Not in stand-by mode

Does not come on

Pressing the brake hold switch (electric parking brake switch assembly)

Stand-by mode

come on

Result

Proceed to

Indicator light and mode condition display do not change

A

Mode condition display is normal, but indicator light does not change

B

Indicator light and mode condition display are normal

C

B

INSPECT METER / GAUGE SYSTEM

C

USE SIMULATION METHOD TO CHECK

A

3.

INSPECT ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

Click here

OK:

The brake hold switch (electric parking brake switch assembly) is normal.

NG

REPLACE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

OK

4.

CHECK HARNESS AND CONNECTOR (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:

The connector is securely connected.

(b) Disconnect the A151 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the I257 brake hold switch (electric parking brake switch assembly) connector.

(d) Check both the connector case and the terminal for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I257-10 (+B) - A151-42 (HZRI)

Always

Below 1 Ω

I257-10 (+B) or A151-42 (HZRI) - Body ground

Always

10 kΩ or higher

I257-12 (E) - Body ground

1 minute or more after disconnecting the cable from the negative (-) auxiliary battery terminal

Below 1 Ω

OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
