Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

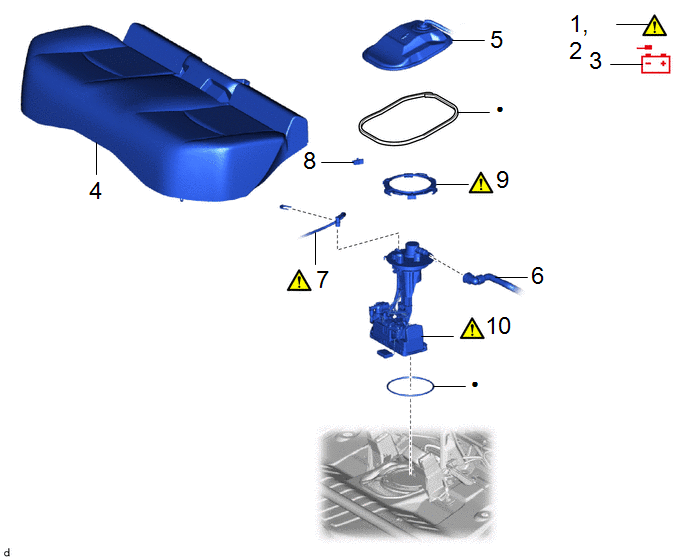

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

DISCHARGE FUEL SYSTEM PRESSURE

-

-

-

3

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

4

REAR SEAT ASSEMBLY

-

-

-

-

5

REAR FLOOR SERVICE HOLE COVER

58325M

-

-

-

6

FUEL TANK VENT HOSE SUB-ASSEMBLY

77404

-

-

-

7

FUEL TANK MAIN TUBE SUB-ASSEMBLY

77209F

-

-

8

NO. 1 FUEL TUBE CLAMP

77285D

-

-

-

9

FUEL PUMP GAUGE RETAINER

77144

-

-

10

FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

77020A

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel pump removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Replacement of fuel pump

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

CAUTION:

  • Never perform work on fuel system components near any possible ignition sources.
  • Vaporized fuel could ignite, resulting in a serious accident.
  • Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.
  • Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

NOTICE:

After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven.

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front camera system

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here

2. DISCHARGE FUEL SYSTEM PRESSURE

Click here

3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

4. REMOVE REAR SEAT ASSEMBLY

Click here

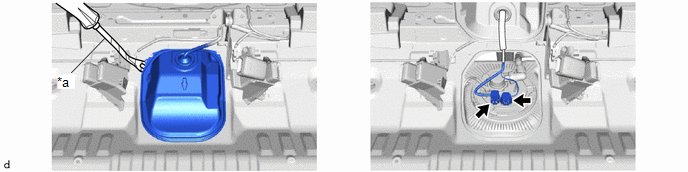

5. REMOVE REAR FLOOR SERVICE HOLE COVER

*a

Protective Tape

-

-

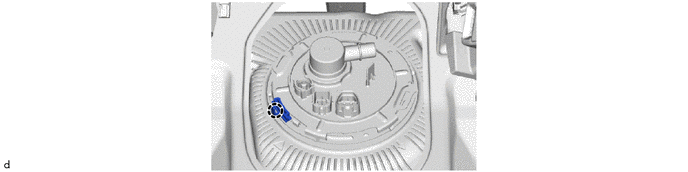

6. INSTALL FUEL TANK VENT HOSE SUB-ASSEMBLY

(1) Disconnect the fuel tank vent hose sub-assembly from the fuel suction tube with pump and gauge assembly.

Click here

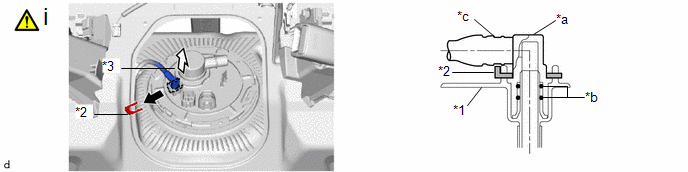

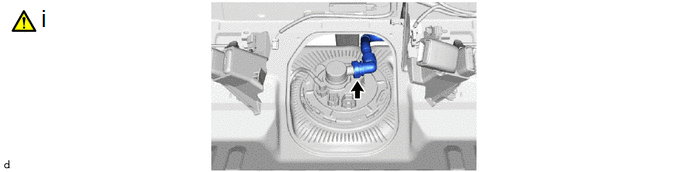

7. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

*1

Fuel Suction Plate Sub-assembly

*2

Tube Joint Clip

*3

Fuel Tank Main Tube Sub-assembly

-

-

*a

Fuel Tube Joint

*b

O-ring

*c

Nylon Tube

-

-

Pull off

Pull off

(1) Remove the tube joint clip, and pull off the fuel tube joint of the fuel tank main tube sub-assembly.

NOTICE:

  • Remove any foreign matter on the fuel tube joint before performing this work.
  • Do not scratch or allow any foreign matter to get on the parts when disconnecting them as the fuel tube connector has O-rings that seal the pipe (fuel pipe).
  • Be sure to disconnect the fuel tube joint by hand.
  • Do not bend, twist, pinch or kink the nylon tube.
  • Cover the disconnected fuel tube joint with a plastic bag to prevent damage and contamination.
  • If the fuel tube joint and fuel suction plate sub-assembly are stuck, push and pull to release them.

8. REMOVE NO. 1 FUEL TUBE CLAMP

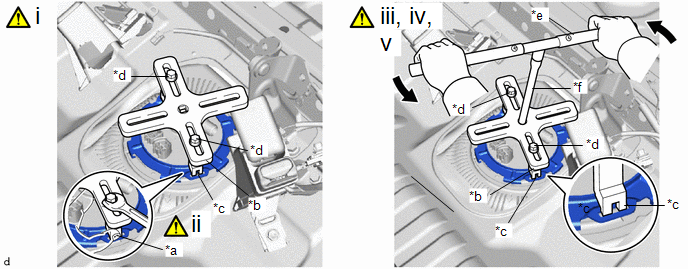

9. REMOVE FUEL PUMP GAUGE RETAINER

*a

Insertion Point

*b

SST (Plate)

*c

SST (Claw)

*d

SST (Bolt)

*e

SST (Handle)

*f

Extension Bar

(1) Temporarily install SST (plate) and SST (claw) to the fuel pump gauge retainer.

SST: 09808-01071

SST: 09808-14031

09808-01030

09808-01090

HINT:

Securely insert the ends of SST (claw) into the insertion points in the fuel pump gauge retainer.

(2) While firmly pressing SST (claw) into the insertion points in the fuel pump gauge retainer, tighten SST (bolt).

(3) Install SST (handle) to SST (plate).

SST: 09808-01071

SST: 09808-14031

09808-01010

09808-01030

09808-01090

(4) Lightly press down on SST to prevent it from separating from the fuel pump gauge retainer. While pressing down on SST, rotate SST (handle) slowly to loosen the fuel pump gauge retainer.

NOTICE:

  • Do not use any tools other than specified as this may result in damage to the fuel pump gauge retainer or fuel tank assembly.
  • Do not press down on SST excessively as this may make the fuel pump gauge retainer hard to rotate, and may damage components.
  • Make sure to rotate SST (handle) horizontally. If it is rotated at an angle, SST may come off.
  • Do not spin SST too fast or use an impact wrench as this may result in damage to components.
  • If SST comes off of the fuel pump gauge retainer, loosen SST (bolt) and reinstall SST.

(5) While pressing down on the fuel suction tube with pump and gauge assembly, remove the fuel pump gauge retainer.

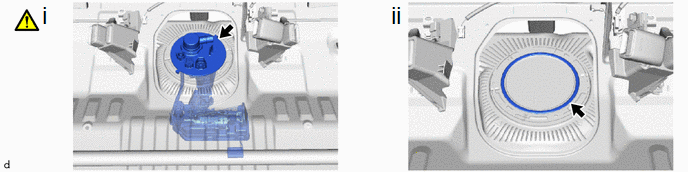

10. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

(1) Remove the fuel suction tube with pump and gauge assembly from the fuel tank assembly.

NOTICE:

Be careful not to bend the arm of the fuel sender gauge assembly.

(2) Remove the fuel suction tube set gasket from the fuel tank assembly.
