Toyota Corolla Cross: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

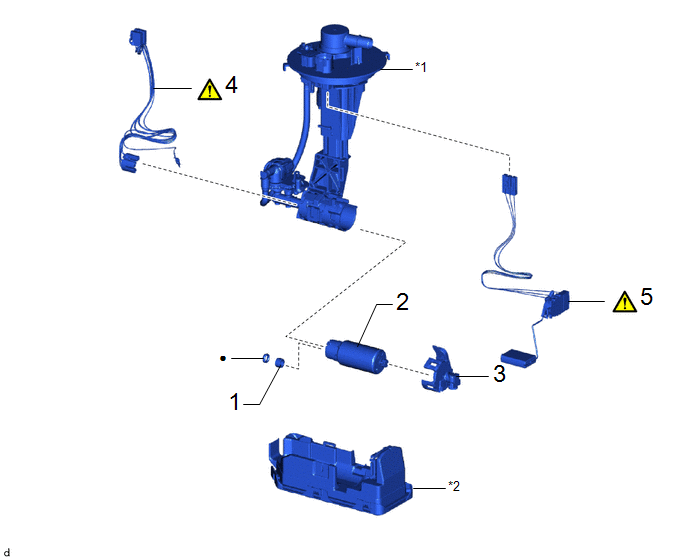

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

FUEL PUMP SPACER

23225A

-

-

-

2

FUEL PUMP

23221

-

-

-

3

NO. 2 FUEL SUCTION SUPPORT

77175

-

-

-

4

FUEL PUMP HARNESS

77785

-

-

5

FUEL SENDER GAUGE ASSEMBLY

83320

-

-

*1

FUEL SUCTION PLATE SUB-ASSEMBLY

*2

FUEL SUB-TANK SUB-ASSEMBLY

Non-reusable part

-

-

CAUTION / NOTICE / HINT

NOTICE:

Perform "Inspection After Repair" after replacing the fuel pump.

Click here

PROCEDURE

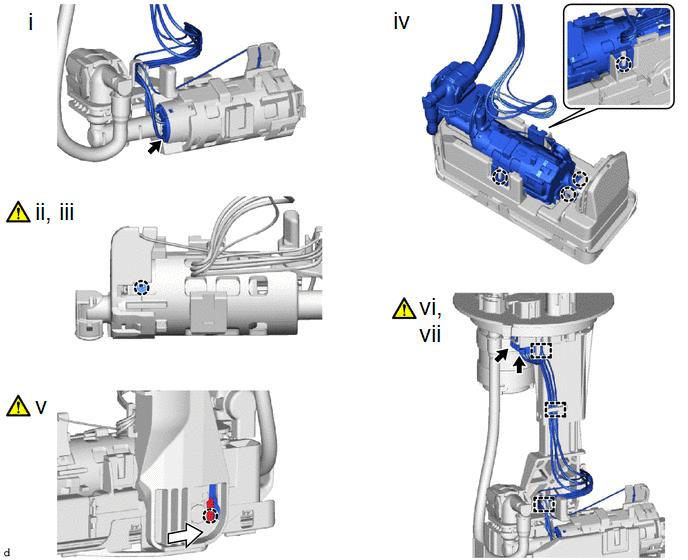

1. INSTALL FUEL PUMP SPACER

2. INSTALL FUEL PUMP

3. INSTALL NO. 2 FUEL SUCTION SUPPORT

4. INSTALL FUEL PUMP HARNESS

Fuel Pump Harness Connector

Slide

(1) Connect the fuel pump harness connector.

(2) Engage the claw to connect the fuel pump harness.

NOTICE:

  • Securely engage the claw.
  • Make sure that there is no foreign matter between the fuel pump and the ground terminal of the fuel pump harness.
  • Make sure that the ground terminal of the fuel pump harness is securely connected to the fuel pump body.

(3) Check the connection state of the fuel pump harness.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Fuel pump body - Ground terminal of the fuel pump harness

Always

Below 50 Ω

If the result is not as specified, reconnect the fuel pump harness to the fuel pump so that the ground terminal of the fuel pump harness is securely connected to the fuel pump body.

(4) Engage the 4 claws to install the fuel suction plate sub-assembly to the fuel sub-tank sub-assembly.

(5) Align the protrusion of the fuel sub-tank sub-assembly with the installation hole of the fuel suction plate sub-assembly and then slide the fuel suction plate sub-assembly to install the fuel sub-tank sub-assembly.

(6) Connect the 2 fuel pump harness connectors.

(7) Engage the 3 clamp to connect the fuel pump harness to the fuel suction plate sub-assembly.

NOTICE:

  • Do not damage the wire harness.
  • When engaging each wire harness to the clamp, engage one wire at a time.

5. INSTALL FUEL SENDER GAUGE ASSEMBLY

Click here
