Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

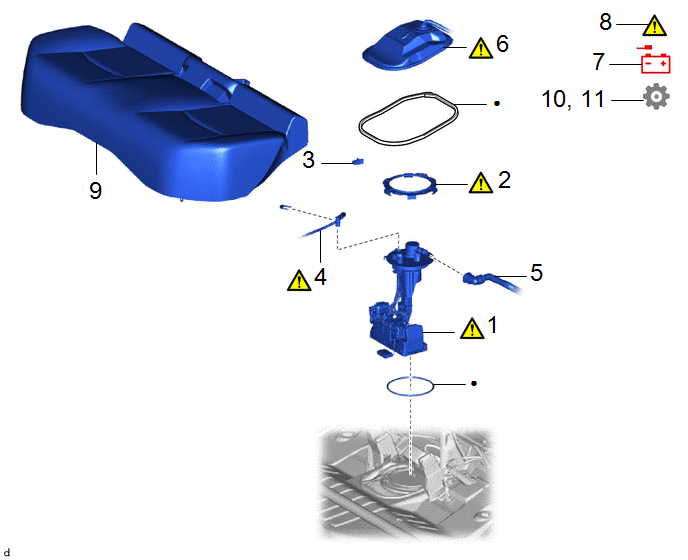

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

77020A

-

-

2

FUEL PUMP GAUGE RETAINER

77144

-

-

3

NO. 1 FUEL TUBE CLAMP

77285D

-

-

-

4

FUEL TANK MAIN TUBE SUB-ASSEMBLY

77209F

-

-

5

FUEL TANK VENT HOSE SUB-ASSEMBLY

77404

-

-

-

6

REAR FLOOR SERVICE HOLE COVER

58325M

-

-

7

CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

8

INSPECT FOR FUEL LEAK

-

-

-

9

REAR SEAT ASSEMBLY

-

-

-

-

10

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

11

PERFORM INITIALIZATION

-

-

-

Non-reusable part

-

-

PROCEDURE

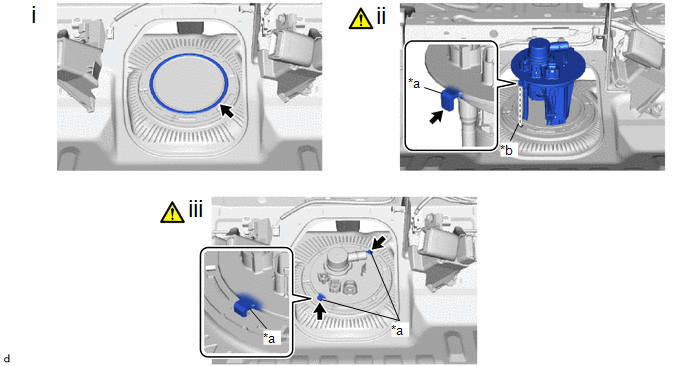

1. INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

*a

Protrusion

*b

Notch

Notch

-

-

(1) Install a new fuel suction tube set gasket to the fuel tank assembly.

(2) Set the fuel suction tube with pump and gauge assembly to the fuel tank assembly.

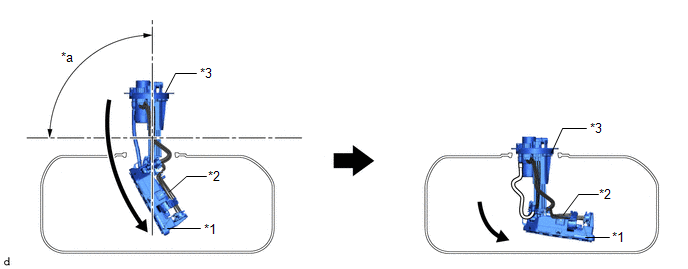

NOTICE:

  • Be careful not to bend the arm of the fuel sender gauge assembly.
  • Make sure the horizontal angle of the fuel suction plate sub-assembly is less than 90°.
  • To avoid applying excessive force to the tip of the fuel sender gauge assembly, tilt the fuel sub-tank sub-assembly diagonally and insert it into the fuel tank assembly as shown in the illustration.

*1

Fuel Sender Gauge Assembly

*2

Fuel Sub-tank Sub-assembly

*3

Fuel Suction Plate Sub-assembly

-

-

*a

90°

-

-

(3) Align the protrusions of the fuel suction tube with pump and gauge assembly with the notches in the fuel tank assembly.

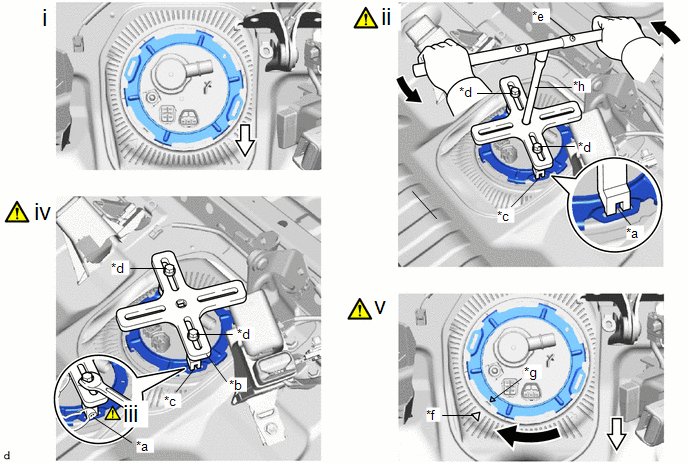

2. INSTALL FUEL PUMP GAUGE RETAINER

*a

Insertion Point

*b

SST (Plate)

*c

SST (Claw)

*d

SST (Bolt)

*e

SST (Handle)

*f

Triangle Mark (Fuel Pump Gauge Retainer)

*g

Triangle Mark (Fuel Tank Assembly)

*h

Extension Bar

Tighten

Front Side of Vehicle

(1) While pressing down on the fuel suction tube with pump and gauge assembly, temporarily install the fuel pump gauge retainer.

(2) Temporarily install SST (plate) and SST (claw) to the fuel pump gauge retainer.

SST: 09808-01071

SST: 09808-14031

09808-01030

09808-01090

HINT:

Securely insert the ends of SST (claw) into the insertion points in the fuel pump gauge retainer.

(3) While firmly pressing SST (claw) into the insertion points in the fuel pump gauge retainer, tighten SST (bolt).

(4) Install SST (handle) to SST (plate).

SST: 09808-01071

SST: 09808-14031

09808-01010

(5) Using SST, rotate the fuel pump gauge retainer so that the triangle mark on the fuel pump gauge retainer is aligned with the triangle mark on the fuel tank assembly to install the fuel suction tube with pump and gauge assembly to the fuel tank assembly.

NOTICE:

  • Do not use any tools other than specified as this may result in damage to the fuel pump gauge retainer or fuel tank assembly.
  • Do not press down on SST excessively as this may make the fuel pump gauge retainer hard to rotate, and may damage components.
  • Make sure to rotate SST (handle) horizontally. If it is rotated at an angle, SST may come off.
  • Do not spin SST too fast or use an impact wrench as this may result in damage to components.
  • If SST comes off of the fuel pump gauge retainer, loosen SST (bolt) and reinstall SST.
  • Make sure that the fuel suction tube set gasket does not come off.

3. INSTALL NO. 1 FUEL TUBE CLAMP

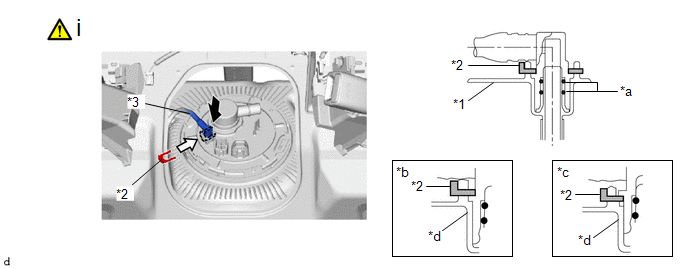

4. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

*1

Fuel Suction Plate Sub-assembly

*2

Tube Joint Clip

*3

Fuel Tank Main Tube Sub-assembly

-

-

*a

O-ring

*b

Correct

*c

Incorrect

*d

Collar

Insert

Insert

(1) Push the fuel tube joint onto the plug of the fuel suction plate sub-assembly, then install the tube joint clip.

NOTICE:

  • Check that there are no scratches or foreign matter around the connecting parts of the fuel tube joint and plug before performing this work.
  • Check that the fuel tube joint is securely inserted to the end.
  • Check that the tube joint clip is on the collar of the fuel tube joint.
  • After installing the tube joint clip, check that the fuel tank main tube sub-assembly is securely connected by pulling on it.

5. CONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY

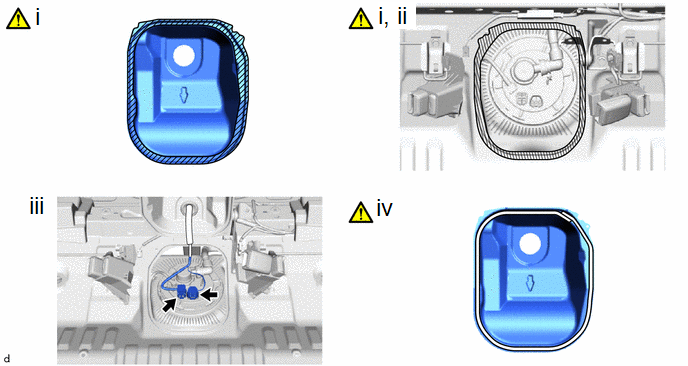

6. INSTALL REAR FLOOR SERVICE HOLE COVER

(1) Remove any remaining butyl tape from the rear floor service hole cover and vehicle body.

(2) Clean the installation surfaces of the rear floor service hole cover and vehicle body.

(3) Connect the fuel pump connector.

(4) Install the rear floor service hole cover with new butyl tape.

NOTICE:

Securely install the rear floor service hole cover.

7. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

8. INSPECT FOR FUEL LEAK

Click here

9. INSTALL REAR SEAT ASSEMBLY

Click here

10. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click here

11. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing the fuel pump.

Click here
