Toyota Corolla Cross: Wiper Ecu

Removal

REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

INSTRUMENT PANEL SAFETY PAD

-

-

-

-

2

WINDSHIELD WIPER RELAY ASSEMBLY

85940

-

-

-

CAUTION / NOTICE / HINT

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    *1: for Gasoline Model

    Front camera system

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system*1

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE INSTRUMENT PANEL SAFETY PAD

Click here

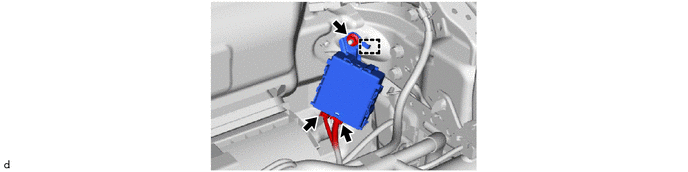

2. REMOVE WINDSHIELD WIPER RELAY ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

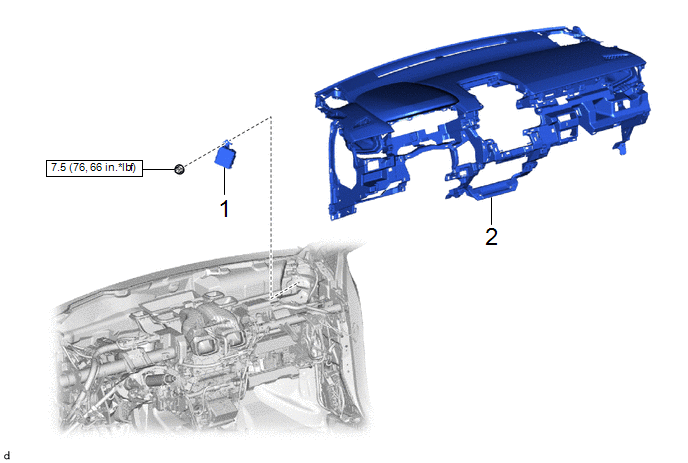

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

WINDSHIELD WIPER RELAY ASSEMBLY

85940

-

-

-

2

INSTRUMENT PANEL SAFETY PAD

-

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL WINDSHIELD WIPER RELAY ASSEMBLY

Torque:

7.5 N·m {76 kgf·cm, 66 in·lbf}

2. INSTALL INSTRUMENT PANEL SAFETY PAD

Click here
