Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

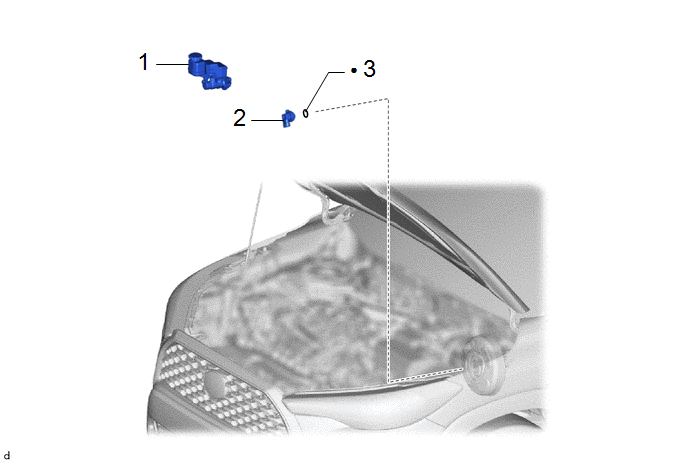

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

BRAKE MASTER CYLINDER SUB-ASSEMBLY

47201

-

-

-

2

VACUUM SENSOR ASSEMBLY

89420H

-

-

-

3

VACUUM SENSOR GROMMET

-

-

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

NOTICE:

After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front camera system

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY

Click here

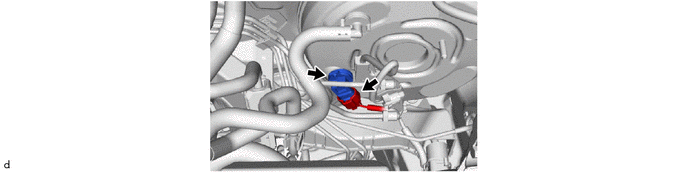

2. REMOVE VACUUM SENSOR ASSEMBLY

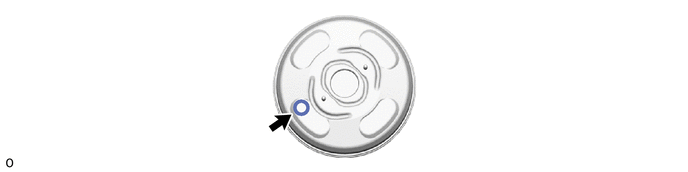

3. REMOVE VACUUM SENSOR GROMMET
