Toyota Corolla Cross (2022-2026) Service Manual / Engine & Hybrid System / M20a-fxs (lubrication) / Oil Pressure And Temperature Sensor / Removal

REMOVAL

CAUTION / NOTICE / HINT

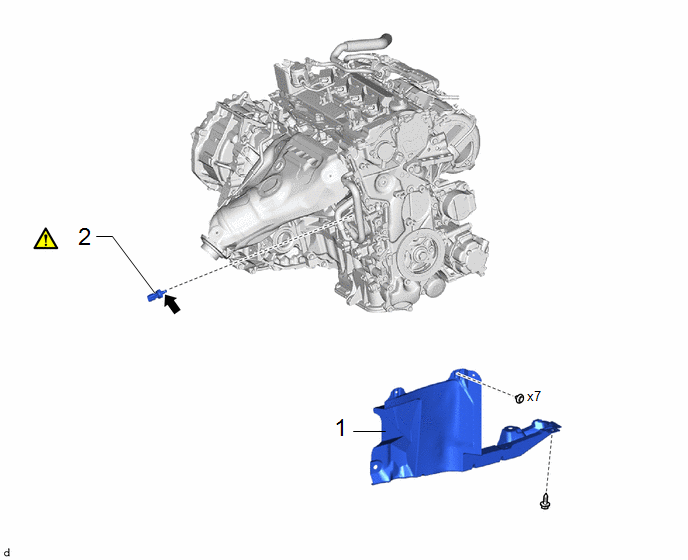

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

REAR ENGINE UNDER COVER RH

51443C

-

-

-

2

OIL PRESSURE AND TEMPERATURE SENSOR

89448D

-

-

Adhesive 1344

★

Precoated part

PROCEDURE

1. REMOVE REAR ENGINE UNDER COVER RH

Click here

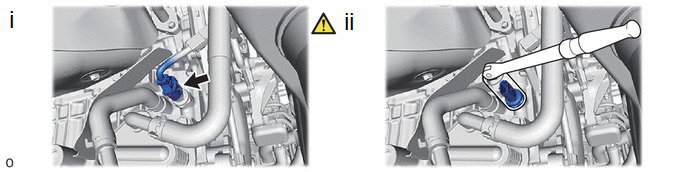

2. REMOVE OIL PRESSURE AND TEMPERATURE SENSOR

(1) Disconnect the oil pressure and temperature sensor connector.

(2) Using a 24 mm deep socket wrench, remove the oil pressure and temperature sensor.

NOTICE:

If the oil pressure and temperature sensor is dropped or subjected to a strong impact, replace it with a new one.
