Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

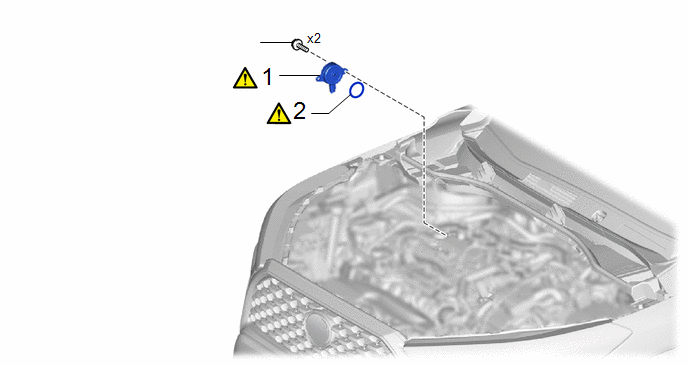

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

15370

-

-

2

O-RING

-

-

-

Non-reusable part

Precoated part

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

(1) Disconnect the cam timing oil control solenoid assembly connector.

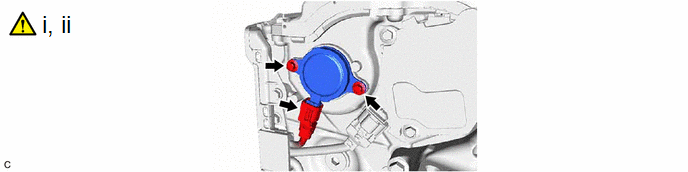

(2) Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.

NOTICE:

If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

2. REMOVE O-RING

HINT:

Perform this procedure only when replacement of the O-ring is necessary.

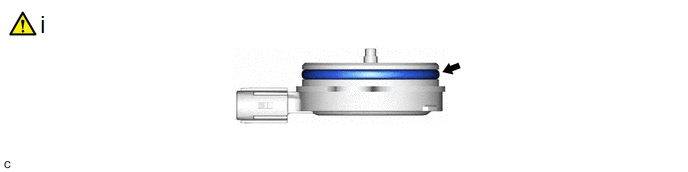

(1) Remove the O-ring from the cam timing oil control solenoid assembly.

NOTICE:

  • When removing the O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
  • If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
