REMOVAL

CAUTION / NOTICE / HINT

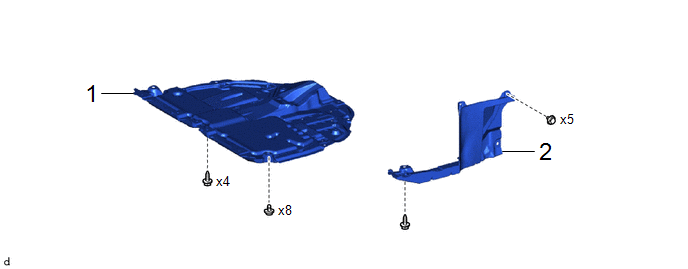

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

2

REAR ENGINE UNDER COVER LH

51444A

-

-

-

Procedure

Part Name Code

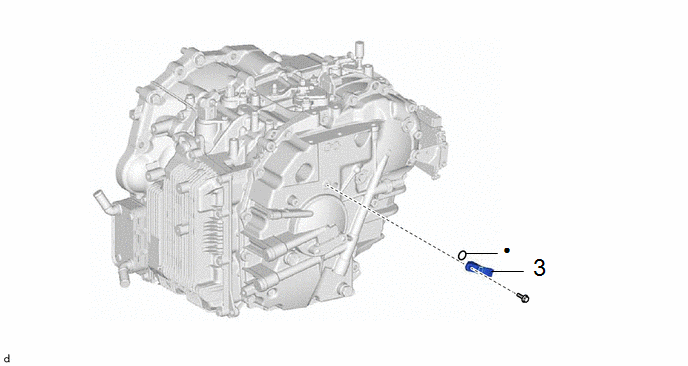

3

TRANSMISSION REVOLUTION SENSOR (NT)

89413N

-

-

-

●

Non-reusable part

-

-

PROCEDURE

1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

2. REMOVE REAR ENGINE UNDER COVER LH

Click here

3. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)
