Toyota Corolla Cross: Relay


			On-vehicle Inspection
ON-VEHICLE INSPECTION
 PROCEDURE

1. INSPECT NO. 1 ELECTRONIC FUEL INJECTION MAIN RELAY (EFI-MAIN NO. 1)

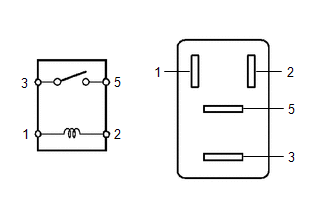

	|   (a) Measure the resistance according to the value(s) in the table below.
	Standard Resistance:     |
		 Tester Connection   |    Condition   |
		 Specified Condition   |     |
			 3 - 5   |    Battery voltage not applied between terminals 1 and 2   |
			 10 kΩ or higher   |     |
			 Battery voltage applied between terminals 1 and 2   |
			 Below 1 Ω   |      If the result is not as specified, replace the No. 1 electronic fuel injection main relay (EFI-MAIN NO. 1).   |
	   |


2. INSPECT NO.2 ELECTRONIC FUEL INJECTION MAIN RELAY (EFI-MAIN NO. 2)

	|   (a) Measure the resistance according to the value(s) in the table below.
	Standard Resistance:     |
		 Tester Connection   |    Condition   |
		 Specified Condition   |     |
			 3 - 5   |    Battery voltage not applied between terminals 1 and 2   |
			 10 kΩ or higher   |     |
			 Battery voltage applied between terminals 1 and 2   |
			 Below 1 Ω   |      If the result is not as specified, replace the No. 2 electronic fuel injection main relay (EFI-MAIN NO. 2).   |
	   |


3. INSPECT NO. 3 ELECTRONIC FUEL INJECTION MAIN RELAY (EFI-MAIN NO. 3)

	|   (a) Measure the resistance according to the value(s) in the table below.
	Standard Resistance:     |
		 Tester Connection   |    Condition   |
		 Specified Condition   |     |
			 3 - 5   |    Battery voltage not applied between terminals 1 and 2   |
			 10 kΩ or higher   |     |
			 Battery voltage applied between terminals 1 and 2   |
			 Below 1 Ω   |      If the result is not as specified, replace the No. 3 electronic fuel injection main relay (EFI-MAIN NO. 3).   |
	   |


4. INSPECT INJECTOR RELAY (D INJ)

	|   (a) Measure the resistance according to the value(s) in the table below.
	Standard Resistance:     |
		 Tester Connection   |    Condition   |
		 Specified Condition   |     |
			 3 - 5   |    Battery voltage not applied between terminals 1 and 2   |
			 10 kΩ or higher   |     |
			 Battery voltage applied between terminals 1 and 2   |
			 Below 1 Ω   |      If the result is not as specified, replace the injector relay (D INJ).   |
	   |


5. INSPECT VVT RELAY (VVT)

	|   (a) Measure the resistance according to the value(s) in the table below.
	Standard Resistance:     |
		 Tester Connection   |    Condition   |
		 Specified Condition   |     |
			 3 - 5   |    Battery voltage not applied between terminals 1 and 2   |
			 10 kΩ or higher   |     |
			 Battery voltage applied between terminals 1 and 2   |
			 Below 1 Ω   |      If the result is not as specified, replace the VVT relay (VVT).   |
	   |
