Toyota Corolla Cross: Reassembly

Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Lighting (ext) / License Plate Light Assembly / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

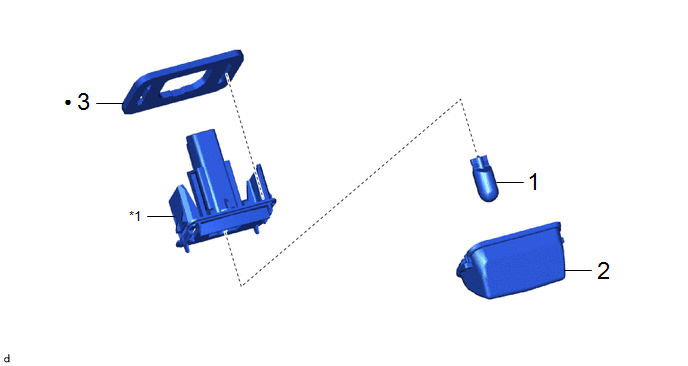

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

LICENSE PLATE LIGHT BULB

81270B

-

-

-

2

LICENSE PLATE LIGHT LENS

-

-

-

-

3

LICENSE PLATE LIGHT PACKING

81274B

-

-

-

*1

LICENSE PLATE LIGHT HOUSING

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL LICENSE PLATE LIGHT BULB

2. INSTALL LICENSE PLATE LIGHT LENS

3. INSTALL LICENSE PLATE LIGHT PACKING
