Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Lighting (ext) / License Plate Light Assembly / Installation

INSTALLATION

CAUTION / NOTICE / HINT

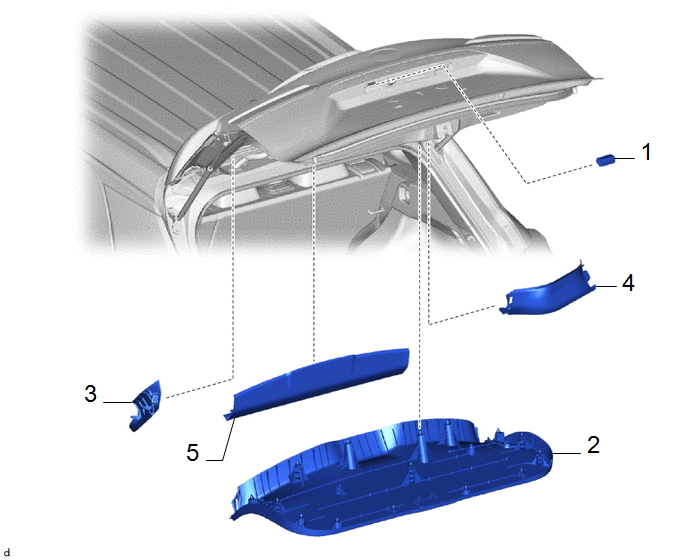

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

LICENSE PLATE LIGHT ASSEMBLY

81270

-

-

-

2

BACK DOOR TRIM PANEL ASSEMBLY

64780A

-

-

-

3

BACK DOOR SIDE GARNISH LH

67938A

-

-

-

4

BACK DOOR SIDE GARNISH RH

67937B

-

-

-

5

BACK DOOR TRIM UPPER PANEL ASSEMBLY

64790B

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY

2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

3. INSTALL BACK DOOR SIDE GARNISH LH

4. INSTALL BACK DOOR SIDE GARNISH RH

5. INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY
