Toyota Corolla Cross: Disassembly

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Heating / Air Conditioning / Blower Unit / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

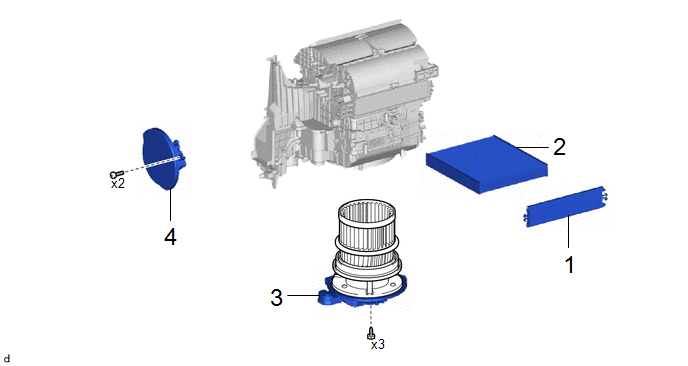

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

AIR FILTER COVER PLATE

88899M

-

-

-

2

CLEAN AIR FILTER

87139C

-

-

-

3

BLOWER MOTOR WITH FAN SUB-ASSEMBLY

87103B

-

-

-

4

NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

87050E

-

-

-

PROCEDURE

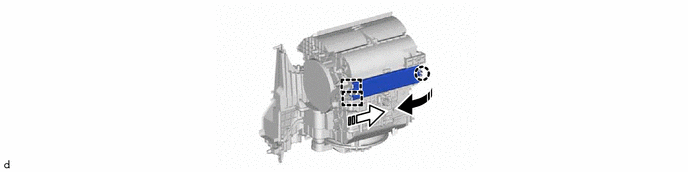

1. REMOVE AIR FILTER COVER PLATE

Remove in this Direction (1)

Remove in this Direction (2)

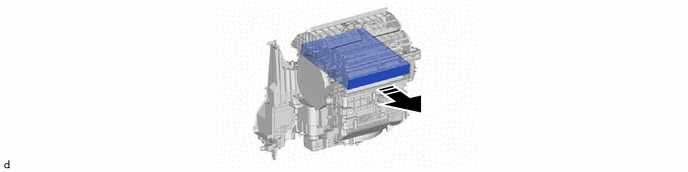

2. REMOVE CLEAN AIR FILTER

Remove in this Direction

-

-

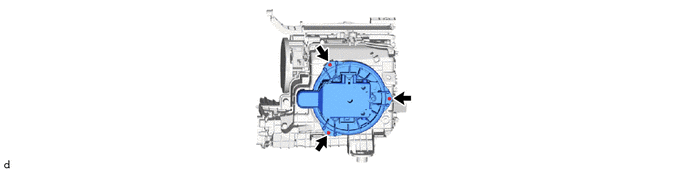

3. REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

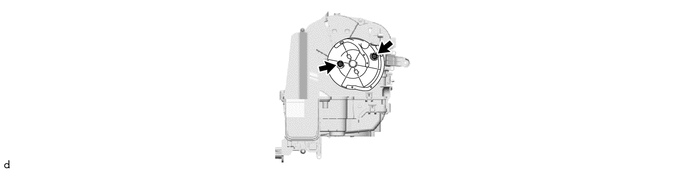

4. REMOVE NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY
