Toyota Corolla Cross: Parts Location

PARTS LOCATION

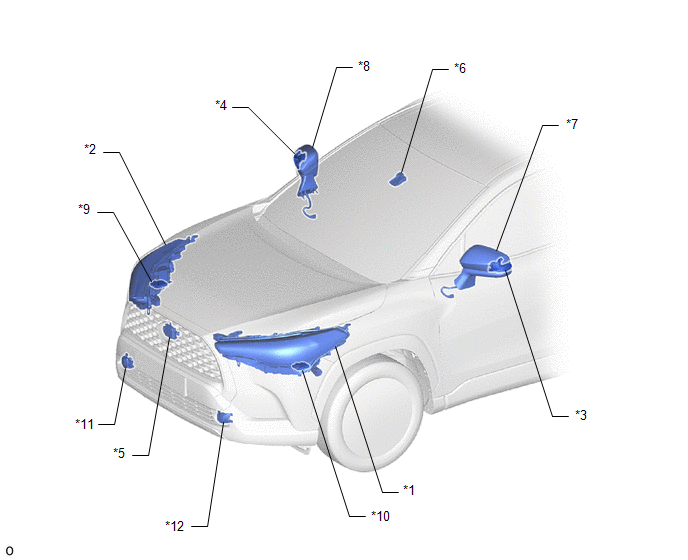

ILLUSTRATION

*1

HEADLIGHT UNIT ASSEMBLY LH

*2

HEADLIGHT UNIT ASSEMBLY RH

*3

SIDE TURN SIGNAL LIGHT ASSEMBLY LH

*4

SIDE TURN SIGNAL LIGHT ASSEMBLY RH

*5

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*6

FORWARD RECOGNITION CAMERA

*7

OUTER REAR VIEW MIRROR ASSEMBLY LH

*8

OUTER REAR VIEW MIRROR ASSEMBLY RH

*9

HEADLIGHT ECU SUB-ASSEMBLY RH

*10

HEADLIGHT ECU SUB-ASSEMBLY LH

*11

FOG LIGHT ASSEMBLY RH

- FOG LIGHT LED

*12

FOG LIGHT ASSEMBLY LH

- FOG LIGHT LED

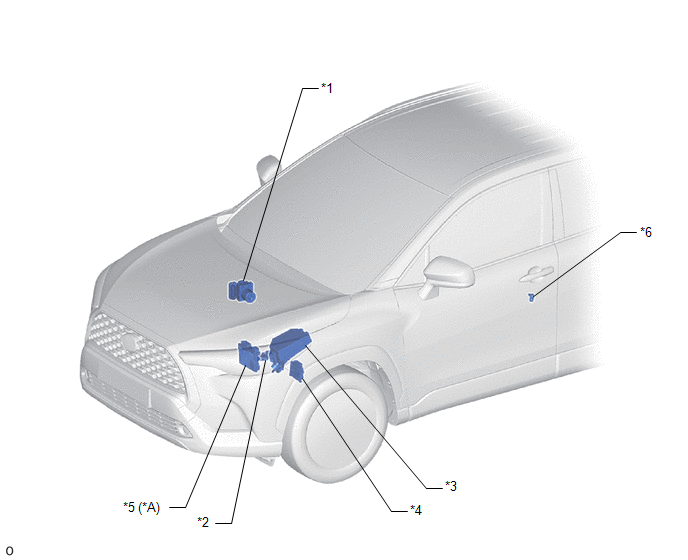

ILLUSTRATION

*A

for Gasoline Model

-

-

*1

SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

*2

PARK/NEUTRAL POSITION SWITCH ASSEMBLY

*3

NO. 1 ENGINE ROOM RELAY BLOCK

- H-LP LH FUSE

- H-LP RH FUSE

- H-LP HI FUSE

- FOG FR FUSE

- H-LP RH RELAY

- H-LP LH RELAY

- H-LP HI RELAY

- INP STD NO. 1 FUSE

*4

TRANSMISSION CONTROL ECU

*5

ECM

*6

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH)

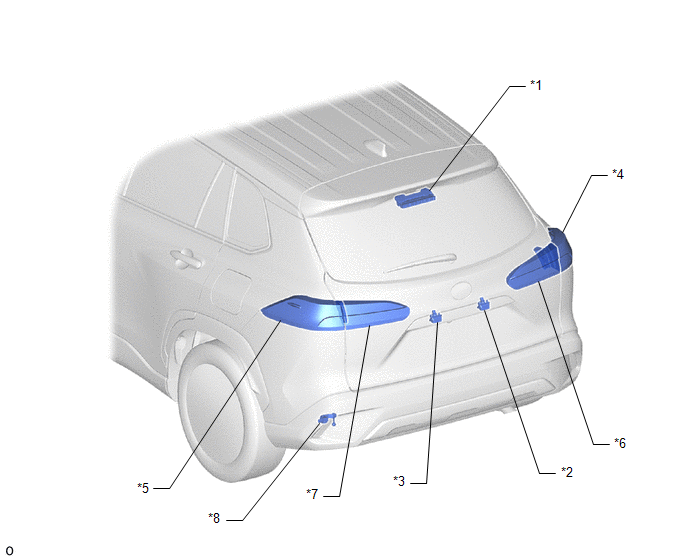

ILLUSTRATION

*1

CENTER STOP LIGHT ASSEMBLY

*2

LICENSE PLATE LIGHT ASSEMBLY (RH)

*3

LICENSE PLATE LIGHT ASSEMBLY (LH)

*4

REAR COMBINATION LIGHT ASSEMBLY RH

*5

REAR COMBINATION LIGHT ASSEMBLY LH

*6

REAR LIGHT ASSEMBLY RH

*7

REAR LIGHT ASSEMBLY LH

*8

HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR LH

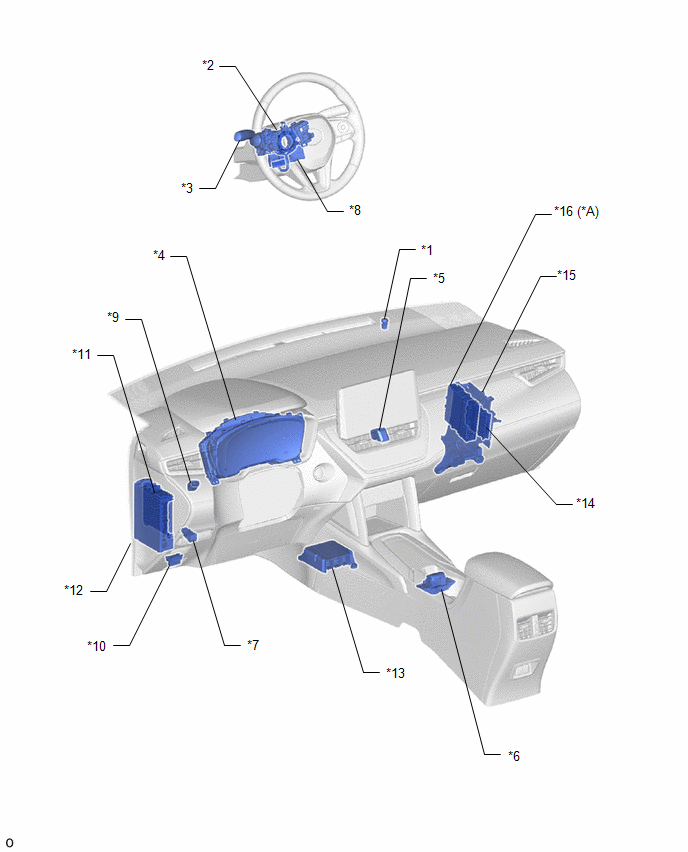

ILLUSTRATION

*A

for HEV Model

-

-

*1

AUTOMATIC LIGHT CONTROL SENSOR

*2

STEERING WHEEL SWITCH HOUSING

*3

TURN SIGNAL SWITCH

- DIMMER SWITCH

- FOG LIGHT SWITCH

- LIGHT CONTROL SWITCH

*4

COMBINATION METER ASSEMBLY

*5

HAZARD WARNING SIGNAL SWITCH ASSEMBLY

*6

ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

*7

AUTO HIGH BEAM SWITCH

*8

STEERING SENSOR

*9

STOP LIGHT SWITCH ASSEMBLY

*10

DLC3

*11

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*12

POWER DISTRIBUTION BOX ASSEMBLY

- ECU-DCC NO. 2 FUSE

- ECU-IGR NO. 2 FUSE

- TAIL FUSE

- STOP FUSE

- HAZ FUSE

- BKUP LP FUSE

- ECU-B NO. 2 FUSE

*13

AIRBAG SENSOR ASSEMBLY

*14

CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

*15

NO. 2 RELAY BLOCK ASSEMBLY

- FR FOG RELAY

*16

HYBRID VEHICLE CONTROL ECU
