Toyota Corolla Cross (2022-2026) Service Manual / Vehicle Exterior / Lighting (ext) / Headlight Assembly (for Bulb Type Clearance Light) / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

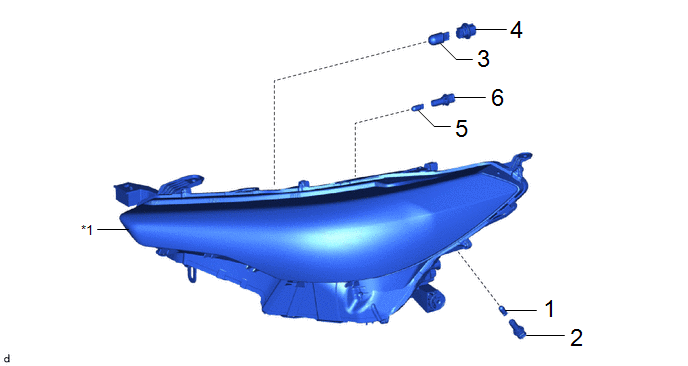

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

FRONT SIDE MARKER LIGHT BULB

81710F

-

-

-

2

FRONT SIDE MARKER LIGHT SOCKET

-

-

-

-

3

FRONT TURN SIGNAL LIGHT BULB

81510D

-

-

-

4

FRONT TURN SIGNAL LIGHT SOCKET

-

-

-

-

5

CLEARANCE LIGHT BULB

81610F

-

-

-

6

CLEARANCE LIGHT SOCKET

-

-

-

-

*1

HEADLIGHT UNIT ASSEMBLY

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT SIDE MARKER LIGHT BULB

2. INSTALL FRONT SIDE MARKER LIGHT SOCKET

3. INSTALL FRONT TURN SIGNAL LIGHT BULB

4. INSTALL FRONT TURN SIGNAL LIGHT SOCKET

5. INSTALL CLEARANCE LIGHT BULB

6. INSTALL CLEARANCE LIGHT SOCKET
