Toyota Corolla Cross: Generator Temperature Sensor Circuit Short to Ground (P0A3611,P0A3615)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / Hybrid / Battery Control / Motor Generator Control System / Generator Temperature Sensor Circuit Short to Ground (P0A3611,P0A3615)

DTC SUMMARY

MALFUNCTION DESCRIPTION

These DTCs are stored when the generator temperature sensor output is abnormal. The cause of this malfunction may be one of the following:

Motor generator control ECU (MG ECU) malfunction
  • Motor generator control ECU (MG ECU) internal malfunction
Generator temperature sensor malfunction
  • Internal generator temperature sensor malfunction
  • Open or short in generator temperature sensor
Wire harness between the generator temperature sensor and motor generator control ECU (MG ECU)
  • The connectors are not connected properly
  • Foreign matter or water on the connector terminals
  • Open or short in wire harness

HINT:

If any of these DTCs are stored, the generator temperature sensor is malfunctioning and the self-protection function may not operate. Therefore under certain high load driving condition, the temperature of the generator (MG1) becomes high. If the self-protection function does not operate, the generator (MG1) may malfunction and cause the vehicle to enter fail-safe mode.

DESCRIPTION

The resistance of the thermistor built into the generator temperature sensor changes in accordance with changes in generator (MG1) temperature. The lower the generator (MG1) temperature, the higher the thermistor resistance. Conversely, the higher the generator (MG1) temperature, the lower the resistance.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Warning Indicate

Note

P0A3611

Generator Temperature Sensor Circuit Short to Ground

Short to ground in the generator temperature sensor circuit

(1 trip detection logic)

  • Wire harness or connector
  • Inverter with converter assembly
  • Generator temperature sensor (Hybrid vehicle transaxle assembly)

Comes on

Master Warning:

Comes on

SAE Code:

P0A38

P0A3615

Generator Temperature Sensor Circuit Short to Auxiliary Battery or Open

Open or short to +B in the generator temperature sensor circuit

(1 trip detection logic)

  • Wire harness or connector
  • Inverter with converter assembly
  • Generator temperature sensor (Hybrid vehicle transaxle assembly)

Comes on

Master Warning:

Comes on

SAE Code:

P0A39

HINT:

After confirming that DTC P0A3611 or P0A3615 is output, use the GTS to check "Generator Temperature" in the Data List.

Displayed Temperature

Malfunction

-40°C (-40°F)

Open circuit or short to +B

215°C (419°F)

Short to ground

MONITOR DESCRIPTION

If the motor generator control ECU detects a malfunction of the generator temperature sensor, it will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs

P0A38 (INF P0A3611): Generator Temperature Sensor Circuit Low

P0A39 (INF P0A3615): Generator Temperature Sensor Circuit High

Required sensors/components

Generator temperature sensor

Frequency of operation

Continuous

Duration

TMC's intellectual property

MIL operation

1 driving cycle

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not stored

TMC's intellectual property

Other conditions belong to TMC's intellectual property

-

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property

-

COMPONENT OPERATING RANGE

Motor generator control ECU

DTC P0A38 (INF P0A3611) is not detected

DTC P0A39 (INF P0A3615) is not detected

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON and turn the GTS on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the ignition switch off and wait for 2 minutes or more.
  5. Turn the ignition switch to ON and turn the GTS on.
  6. With ignition switch ON and wait for 5 seconds or more. [*1]

    HINT:

    [*1]: Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  7. Enter the following menus: Powertrain / Motor Generator / Utility / All Readiness.
  8. Check the DTC judgment result.

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE, perform the normal judgment procedure again.

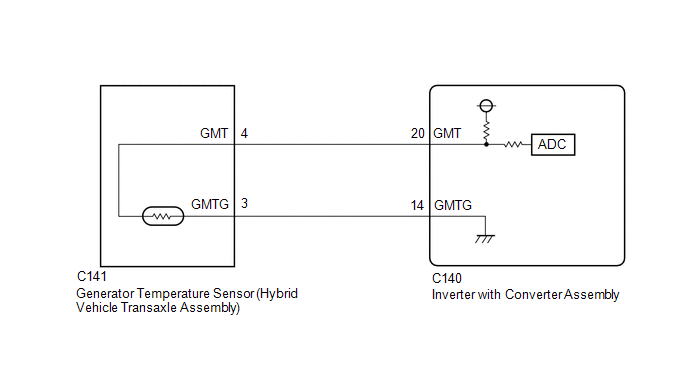

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION:

Refer to the precautions before inspecting high voltage circuit.

Click here

NOTICE:

  • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Click here

  • When disconnecting and reconnecting the auxiliary battery.

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Click here

PROCEDURE

1.

CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)

Click here

Result

Proceed to

OK

A

NG (The connector is not connected securely.)

B

NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.)

C

B

CONNECT SECURELY

C

REPAIR OR REPLACE HARNESS OR CONNECTOR

A

2.

CHECK CONNECTOR CONNECTION CONDITION (GENERATOR TEMPERATURE SENSOR CONNECTOR)

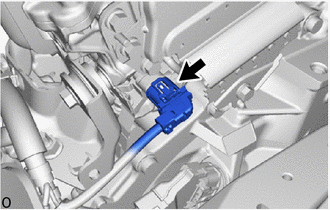

(a) Check the connection condition of the generator temperature sensor connector and the contact pressure of each terminal. Check the terminals for deformation, and check the connector for water ingress and foreign matter.

Click here

OK:

- The connector is connected securely.

- The terminals are not deformed and are connected securely.

- No water or foreign matter in the connector.

Result

Proceed to

OK

A

NG (The connector is not connected securely.)

B

NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.)

C

B

CONNECT SECURELY

C

REPAIR OR REPLACE HARNESS OR CONNECTOR

A

3.

READ VALUE USING GTS (GENERATOR TEMPERATURE)

(a) Read the Data List.

Powertrain > Motor Generator > Data List

Tester Display

Generator Temperature

Result

Proceed to

-40°C (-40°F)

A

Same as actual temperature

B

(b) Turn the ignition switch off.

B

REPAIR OR REPLACE HARNESS OR CONNECTOR

A

4.

INSPECT HYBRID VEHICLE TRANSAXLE ASSEMBLY (GENERATOR TEMPERATURE SENSOR)

(a) Disconnect the generator temperature sensor connector.

(b) Measure the resistance according to the value(s) in the table below.

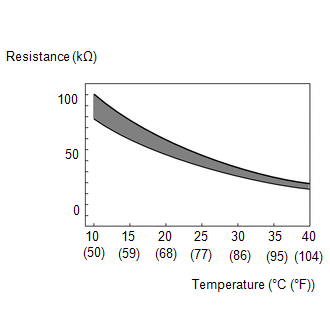

Standard Resistance:

Tester Connection

Condition

Specified Condition

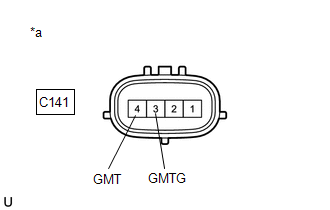

C141-4 (GMT) - C141-3 (GMTG)

Ignition switch off

0.3 to 2000 kΩ

*a

Component without harness connected

(Generator Temperature Sensor (Hybrid Vehicle Transaxle Assembly))

(c) Reconnect the generator temperature sensor connector.

NG

REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY

OK

5.

CHECK HARNESS AND CONNECTOR (GENERATOR TEMPERATURE SENSOR - INVERTER WITH CONVERTER ASSEMBLY)

(a) Disconnect the generator temperature sensor connector.

(b) Disconnect the inverter with converter assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):

Tester Connection

Condition

Specified Condition

C141-4 (GMT) - C140-20 (GMT)

Ignition switch off

Below 1 Ω

C141-3 (GMTG) - C140-14 (GMTG)

Ignition switch off

Below 1 Ω

Standard Resistance (Check for Short):

Tester Connection

Condition

Specified Condition

C141-4 (GMT) or C140-20 (GMT) - Body ground and other terminals

Ignition switch off

10 kΩ or higher

C141-3 (GMTG) or C140-14 (GMTG) - Body ground and other terminals

Ignition switch off

10 kΩ or higher

(d) Reconnect the inverter with converter assembly connector.

(e) Reconnect the generator temperature sensor connector.

OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
