Toyota Corolla Cross: Precaution

PRECAUTION

NOTICE:

When disassembling the headlight assembly, use static electricity countermeasures SST (desktop anti-static mat set) and observe all precautions to prevent damage to the system by electrostatic discharge (ESD).

STATIC ELECTRICITY COUNTERMEASURES SST

SST: Desktop anti-static mat set (09890-47010)

  • Wristband

    SST:

    09891-04020

  • Wristband connection wire (No. 1 grounding wire)

    SST:

    09891-04030

  • Anti-static mat

    SST:

    09891-04010

  • Ground connection wire (No. 2 grounding wire)

    SST:

    09891-04040

PRECAUTIONS DURING REPLACEMENT

(a) Precautions during procedures:

(1) Before performing any procedures, touch an unpainted metal part or ground bolt of the vehicle to eliminate any static electricity.

(2) To prevent damage to electrical equipment, disconnect the battery power supply before installing and removing electrical equipment.

(3) Never touch the electronic parts of a printed wire board or the pins of an integrated circuit.

(4) When performing procedures, do not allow clothing to come near or contact parts.

(b) Wear SST (wristband) firmly on your wrist.

SST:

09891-04020

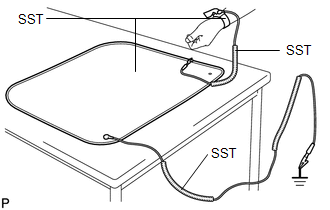

(c) Connect SST (No. 2 grounding wire) and SST (anti-static mat) to an appropriate grounding point in the workspace and on the work table.

SST:

09891-04040

09891-04010

HINT:

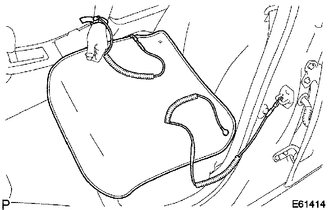

When working inside the vehicle:

Connect SST (No. 2 grounding wire) to an unpainted metal part or a ground bolt, etc.

(d) Connect SST (No. 1 grounding wire), SST (wristband) and SST (anti-static mat).

SST:

09891-04030

(e) Always place the headlight assembly and its components on SST (anti-static mat).
